Description:

We can supply High Viscosity Round Gear Micro Liquid Flow Meter 0.5% Accuracy Hydraulic Oil Hot Melt Adhesive Flow Meter

Technical Parameter

FLOWMETER

Medium:Suitable for liquids, high viscosity media such as: water; Oil; Glue; polyurethane, etc

Precision:Standard accuracy +/-0.5%

Pressure:Withstands pressure 200 Bar

Temperature:Standard temperature range: -30~80°C, stainless steel series, maximum temperature 250°C

Output:Hall & thousand reed pulse output

Bearing:Ball bearings or PEEK bearings

Power supply:4~26VDC power supply

Stainless steel series material:Housing: SS316L Gear: SS316L Bearing: SS316L

Medium:Suitable for high viscosity liquids; For example: glue; polyurethane

Aluminum alloy series material:Housing: anodized aluminum

Gears: SS316L

Bearing: SS316L

Medium:No corrosive liquids; For example: gasoline; Aviation kerosene

BALL TYPE

MODEL	Initiation flow	Flow range	Pulse coefficient	connect
CX-G0.025-B-AL	0.001L/min	0.004-2L/min	0.025ml/p	G1/8
CX-G0.025-B-SS	0.001L/min	0.01-4L/min	0.025ml/p	G1/8
CX-G0.04-B-AL	0.004L/min	0.01-4L/min	0.04m/p	G1/4
CX-G0.04-B-AL	0.004L/min	0.01-4L/min	0.04m//p	G1/4
CX-G0.1-B-AL	0.008L/min	0.02-8L/min	0.1ml/p	G1/8
CX-G0.1-B-SS	0.008L/min	0.02-8L/min	0.1ml/p	G1/8
CX-G0.2-B-AL	0.01L/min	0.08-16L/min	0.245ml/p	G1/4
CX-G0.2-B-SS	0.01L/min	0.08-16L/min	0.245ml/p	G1/4
CX-G0.4-B-AL	0.01L/min	0.1-40L/min	0.4ml/p	G1/4
CX-G0.4-B-SS	0.01L/min	0.1-40L/min	0.4ml/p	G1/4
CX-G1-B-AL	0.02L/min	0.2-80L/min	1ml/p	G1/2
CX-G1-B-SS	0.02L/min	0.2-80L/min	1ml/p	G1/2
CX-G2-B-AL	0.04L/min	0.5-120L/min	2m/p	G1/4
CX-G2-B-SS	0.04L/min	0.5-120L/min	2ml/p	G1/4

PEEK TYPE

MODEL	Initiation flow	Flow range	Pulse coefficient	connect
CX-G0.025-P-AL	0.001L/min	0.008-1L/min	0.025ml/p	G1/8
CX-G0.025-P-SS	0.001L/min	0.008-1L/min	0.025ml/p	G1/8
CX-G0.04-P-AL	0.004L/min	0.02-2L/min	0.04ml/p	G1/4
CX-G0.04-P-SS	0.004L/min	0.02-2L/min	0.04ml/p	G1/4
CX-G0.1-P-AL	0.008L/min	0.04-4L/min	0.1ml/p	G1/8
CX-G0.1-P-SS	0.008L/min	0.04-4L/min	0.1ml/p	G1/8
CX-G0.2-P-AL	0.01L/min	0.16-8L/min	0.245ml/p	G1/4
CX-G0.2-P-SS	0.01L/min	0.16-8L/min	0.245ml/p	G1/4
CX-G0.4-P-AL	0.01L/min	0.2-20L/min	0.4ml/p	G1/4
CX-G0.4-P-SS	0.01L/min	0.2-20L/min	0.4ml/p	G1/4
CX-G0.4-P-SS	0.01L/min	0.2-20L/min	0.4ml/p	G1/4
CX-G1-P-AL	0.02L/min	0.4-40L/min	1ml/p	G1/2
CX-G1-P-SS	0.02L/min	0.4-40L/min	1ml/p	G1/2
CX-G2-P-AL	0.04L/min	1-60L/min	2ml/p	G3/4
CX-G2-P-SS	0.04L/min	1-60L/min	2ml/p	G3/4

Features

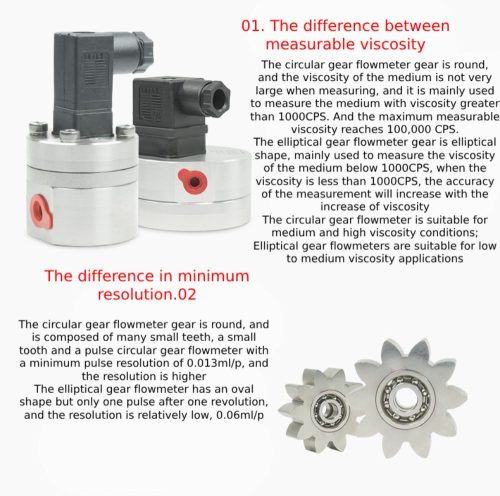

Spur Gear VS Elliptical Gear Flow Meter
What are the differences ?

Application

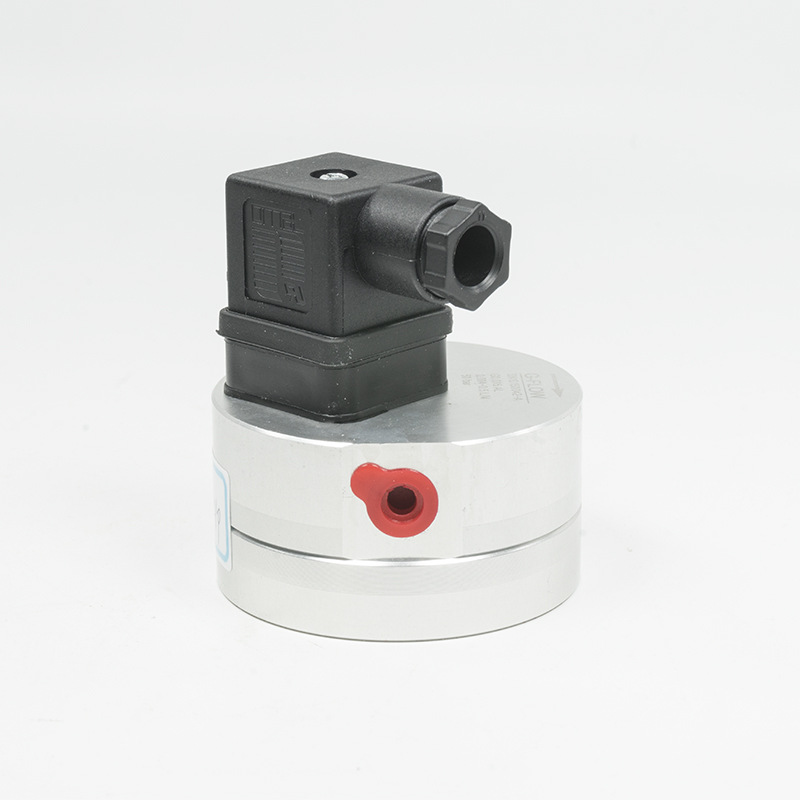

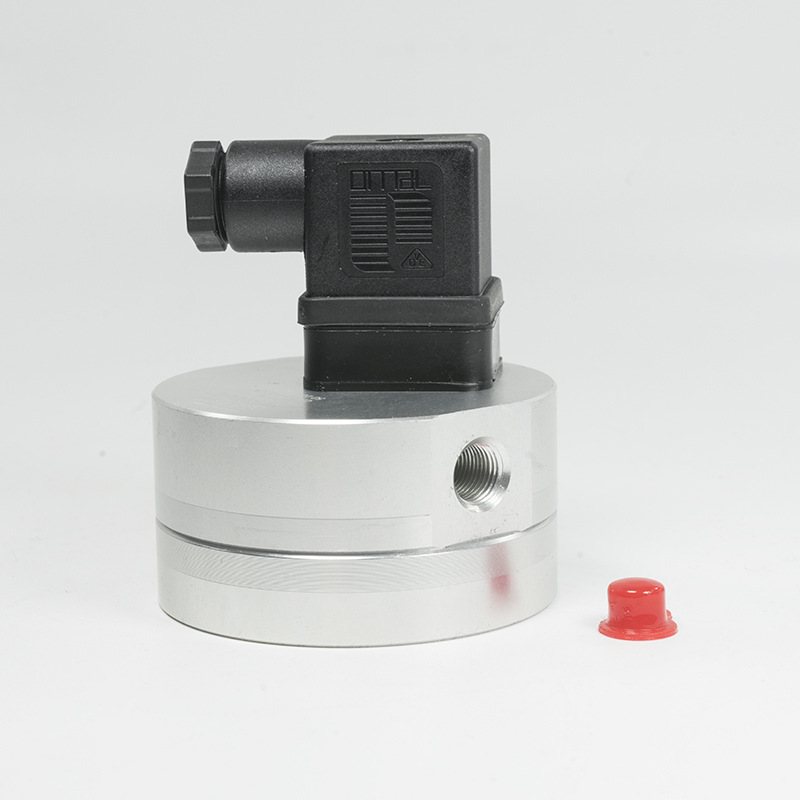

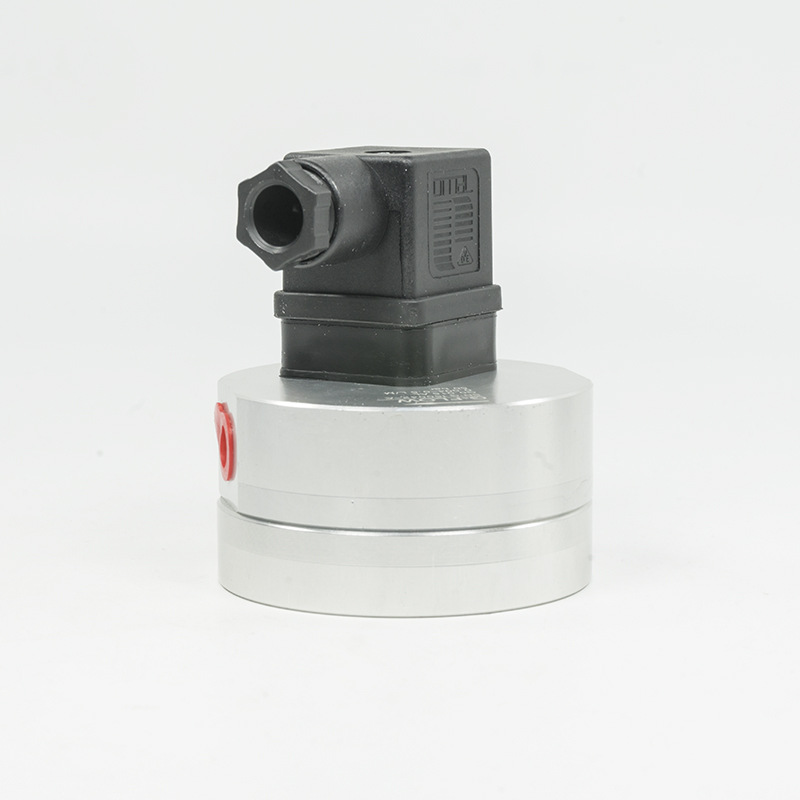

Product Picture

Workshop

Origin: China

MOQ: 1 Pc

Delivery Time: 7 Days

Transportation: DHL, FedEx, UPS, Air, Sea

Payment Method: T/T, WU
