Household 220V Automatic AC Voltage Regulator 5kva Single-Phase Outlet Air Conditioner Customized Regulated Power Supply
Description:
We can supply Household 220V Automatic AC Voltage Regulator 5kva Single-Phase Outlet Air Conditioner Customized Regulated Power Supply
Technical Parameter
| Product Name | Fully Automatic AC Voltage Regulator | Model | SVC-5KVA |
| Input Voltage | 150~260V | Output Voltage | 220V±3% |
| Output Current | 22.3A | Frequency | 50-60Hz |
| Adjustment Time | <1S | Ambient Temperature | -10~+40°℃ |
| Temperature Rise | <60℃ | Dielectric Strength | 2000V/min |
| Power Factor | 0.8 | Waveform Distortion | No Additional Waveform Distortion |
| Insulation Resistance | >2MΩ | Dimensions cm | 33.5*23*28cm |
| Weight | Approximately 14KG | ||
| Feature Description | Equipped with over-voltage protection, under-voltage protection, overload protection, and other functions High output voltage accuracy, controlled by a central processing unit (CPU), high quality at a low price |
||
More models
| Model | Size (cm) | Input Voltage (V) | Output Voltage (V) | Current (A) |
| 1KVA | 22*20*16 | 150-250 | 220 | 4.5 |
| 2KVA | 28.5*24*20.5 | 150-250 | 220 | 9 |
| 3KVA | 31*23*23.5 | 150-250 | 220 | 13.6 |
| 5KVA | 33.5*23*28 | 150-250 | 220 | 22.7 |
| 10KVA | 31.5*34.5*56 | 150-250 | 220 | 45 |
| 15KVA | 38*34*64 | 150-250 | 220 | 68 |
| 20KVA | 34*38*74.5 | 150-250 | 220 | 91 |
| 30KVA | 38*42*77 | 150-250 | 220 | 136 |
| 50KVA | 55*45*104 | 150-250 | 220 | 227 |
| 60KVA | 150-250 | 220 | 272 |
Features

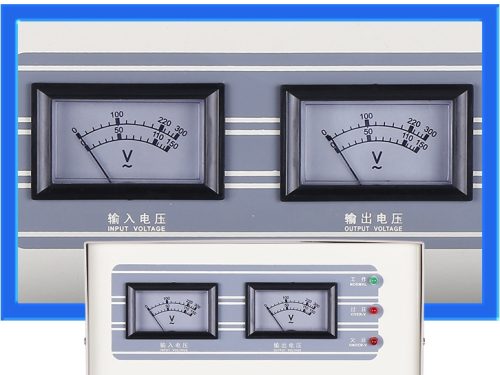

The pointer display table and the digital display table can be customized
The hands are sensitive, accurate and not easily damaged

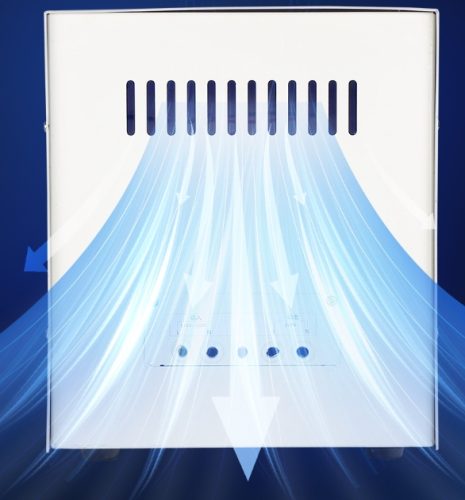

Side vent design
Effective cooling
Multiple heat dissipation holes on both sides can effectively reduce the temperature in the box
Application

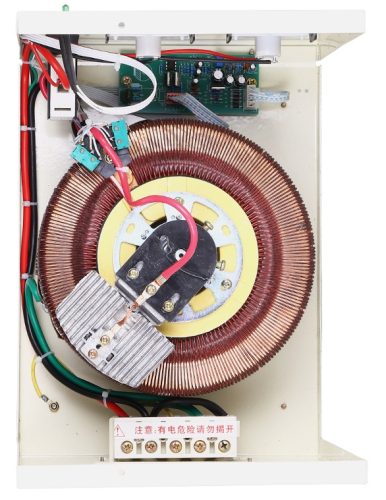

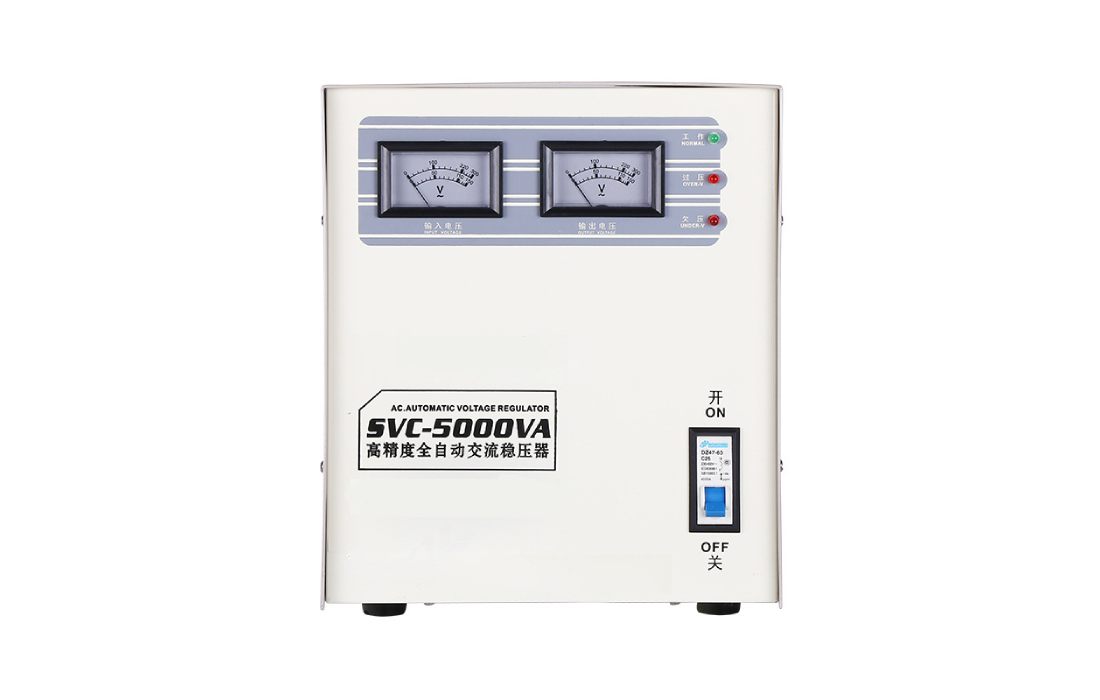

Product Picture

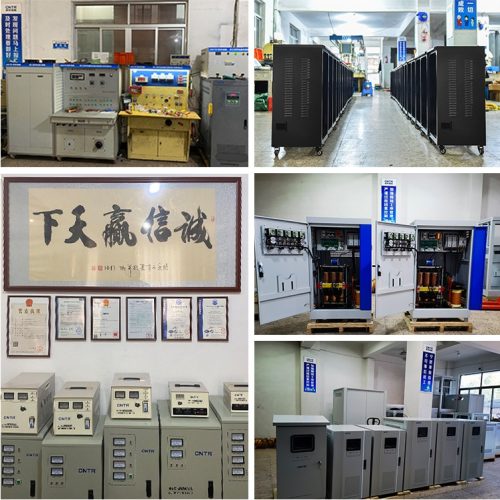

Workshop
Origin: China
MOQ: 1 Pc
Delivery Time: 7 Days
Transportation: DHL, FedEx, UPS, Air, Sea
Payment Method: T/T, WU
