Infinitely Variable Speed Dc Motor, Brushless Non-Magnetic Inverter, High-Efficiency Motor, Electric Vehicle Motor
Description:
We can supply Infinitely Variable Speed Dc Motor, Brushless Non-Magnetic Inverter, High-Efficiency Motor, Electric Vehicle Motor
Technical Parameter
| Model | Power (KW) | Voltage (V) | Current (A) | Speed | Efficiency | Duty cycle | Service factor |
| LR801DC4 | 1.1 | 48/60 72/96 |
25.5/20.3 16.9/12.7 |
1500 RPM or 3000 RPM or continuously variable transmission |
90% | S1 | 1.25 |
| LR802DC4 | 1.5 | 48/60 72/96 |
34.7/27.7 23/17.4 |
1500 RPM or 3000 RPM or continuously variable transmission |
90% | S1 | 1.25 |
| LR90L1DC4 | 2.2 | 48/60 72/96 |
49.8/39.8 33/25 |
1500 RPM or 3000 RPM or continuously variable transmission |
92% | S1 | 1.25 |
| LR90L2DC4 | 3 | 48/60 72/96 |
67.9/54.3 45/34 |
1500 RPM or 3000 RPM or continuously variable transmission |
92% | S1 | 1.25 |
| LR100L1DC4 | 3 | 48/60 72/96 |
67.9/54.3 45/34 |
1500 RPM or 3000 RPM or continuously variable transmission |
92% | S1 | 1.25 |
| LR100L2DC4 | 4 | 48/60 72/96 |
89.6/71.6 59.7/45 |
1500 RPM or 3000 RPM or continuously variable transmission |
93% | S1 | 1.25 |
| LR112M1DC4 | 4 | 48/60 72/96 |
89.6/71.6 59.7/45 |
1500 RPM or 3000 RPM or continuously variable transmission |
93% | S1 | 1.25 |
| LR112M2DC4 | 5.5 | 48/60 72/96 |
120.6/96.5 80.5/60 |
1500 RPM or 3000 RPM or continuously variable transmission |
95% | S1 | 1.25 |
| LR132SDC4 | 5.5 | 48/60 72/96 |
120.6/96.5 80.5/60 |
1500 RPM or 3000 RPM or continuously variable transmission |
95% | S1 | 1.25 |
| LR132M1DC4 | 7.5 | 48/60 72/96 |
164.5/131.5 109.6/82 |
1500 RPM or 3000 RPM or continuously variable transmission |
95% | S1 | 1.25 |
| LR132M2DC4 | 10 | 48/60 72/96 |
220/175.5 146/110 |
1500 RPM or 3000 RPM or continuously variable transmission |
95% | S1 | 1.25 |
| LR160M1DC4 | 11 | 48/60 72/96 |
241/193 160.8/120 |
1500 RPM or 3000 RPM or continuously variable transmission |
95% | S1 | 1.25 |
| LR160M2DC4 | 15 | 48/60 72/96 |
328.9/263 219.5/165 |
1500 RPM or 3000 RPM or continuously variable transmission |
95% | S1 | 1.25 |
| LR160LDC4 | 22 | 48/60 72/96 |
482.5/386 321.6/242 |
1500 RPM or 3000 RPM or continuously variable transmission |
95% | S1 | 1.25 |

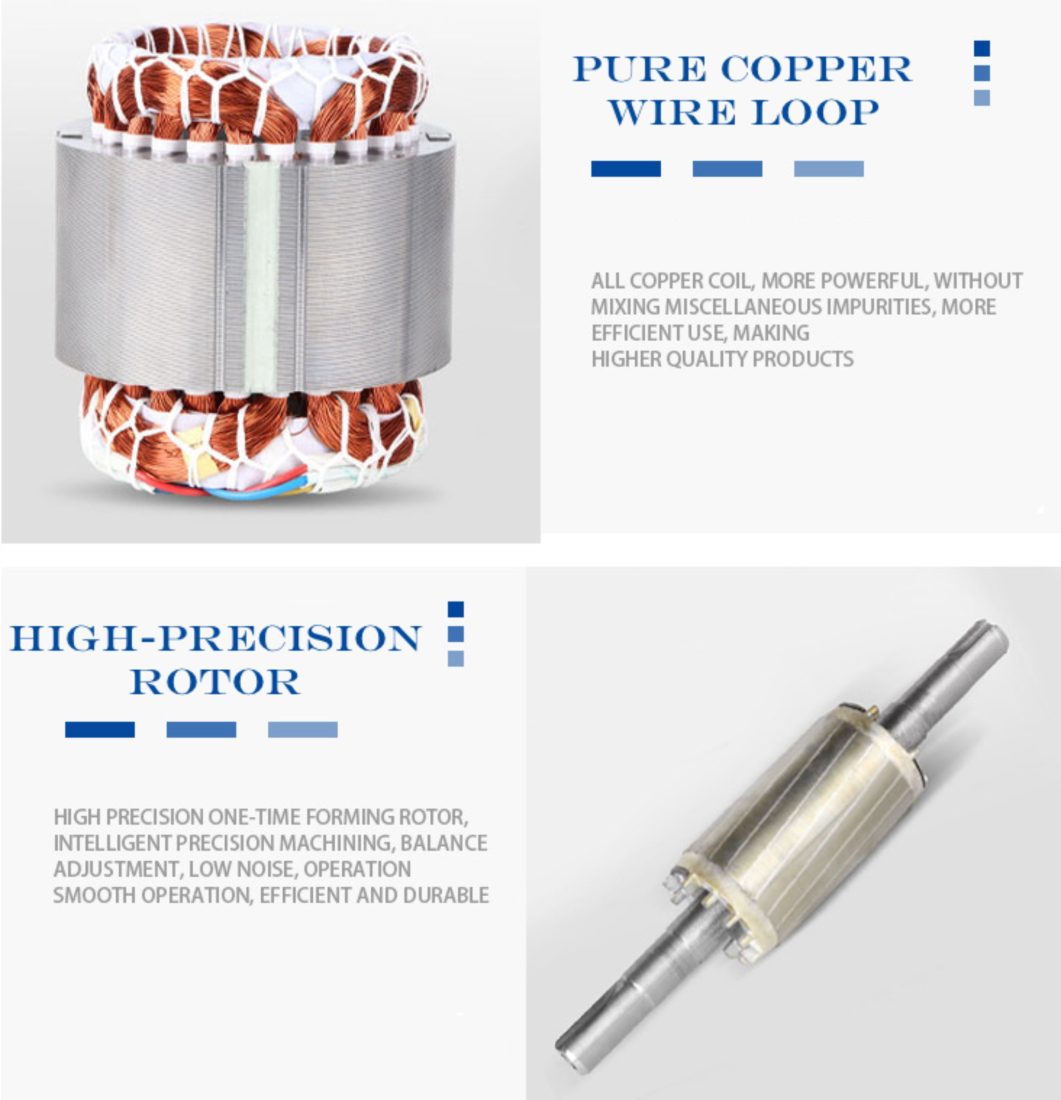

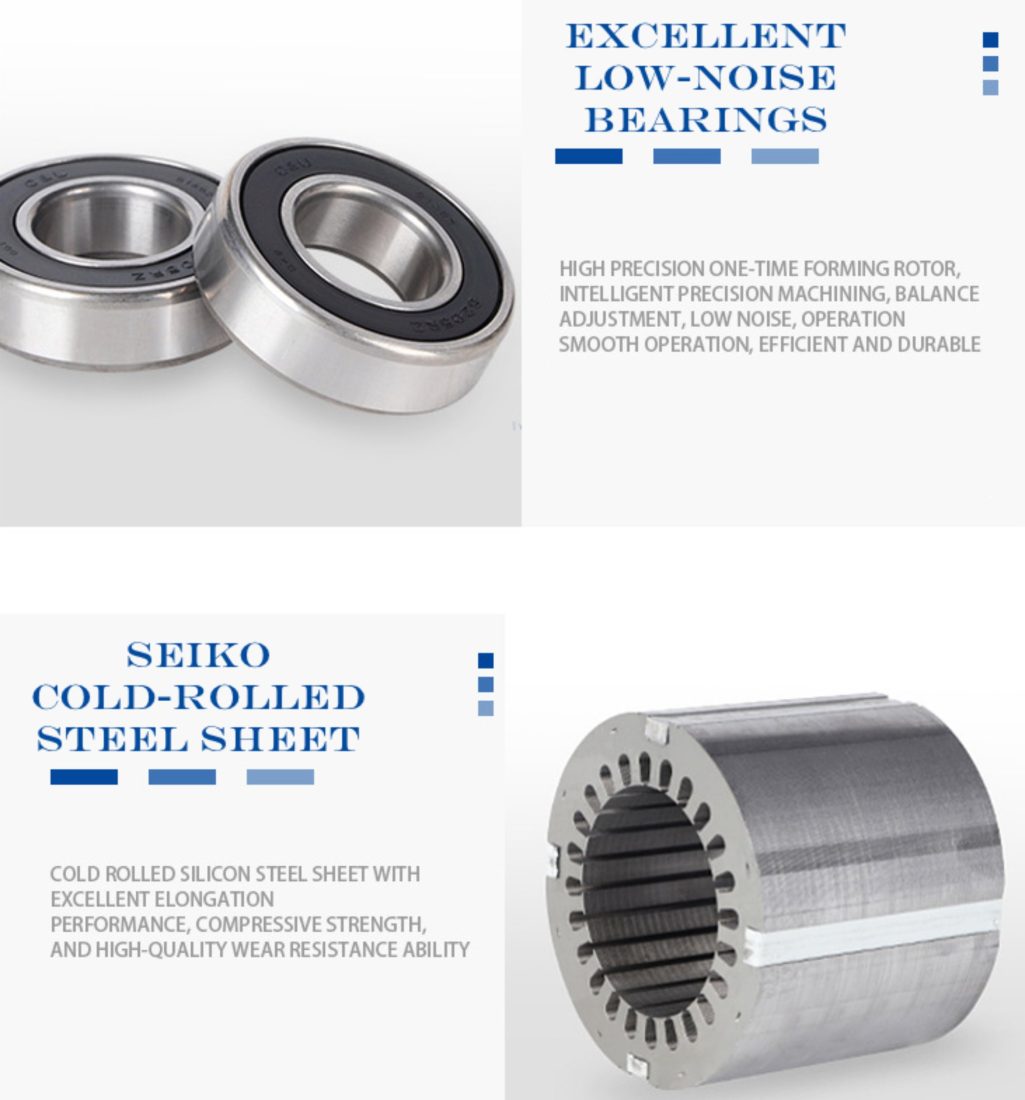

Features

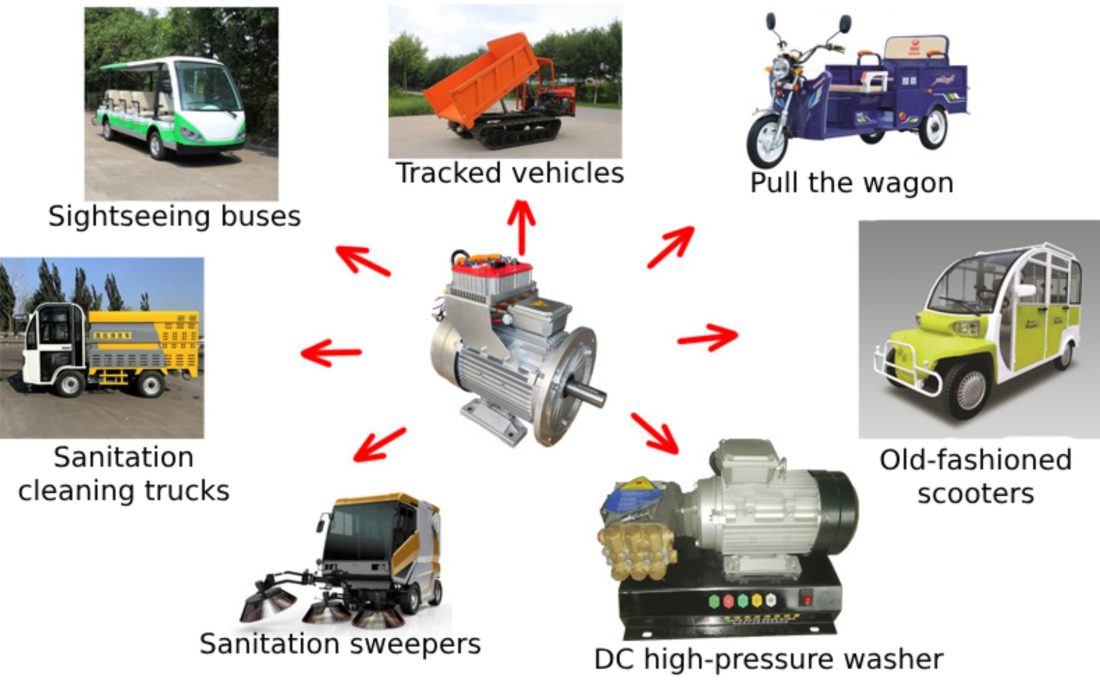

Application

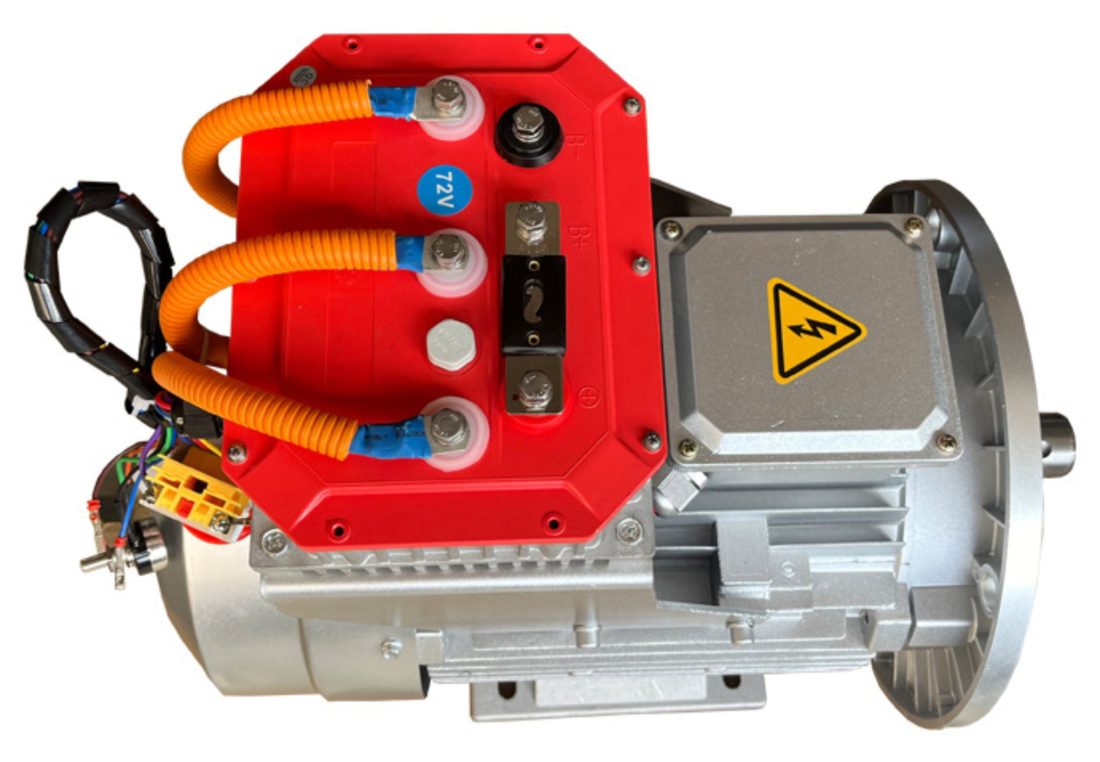

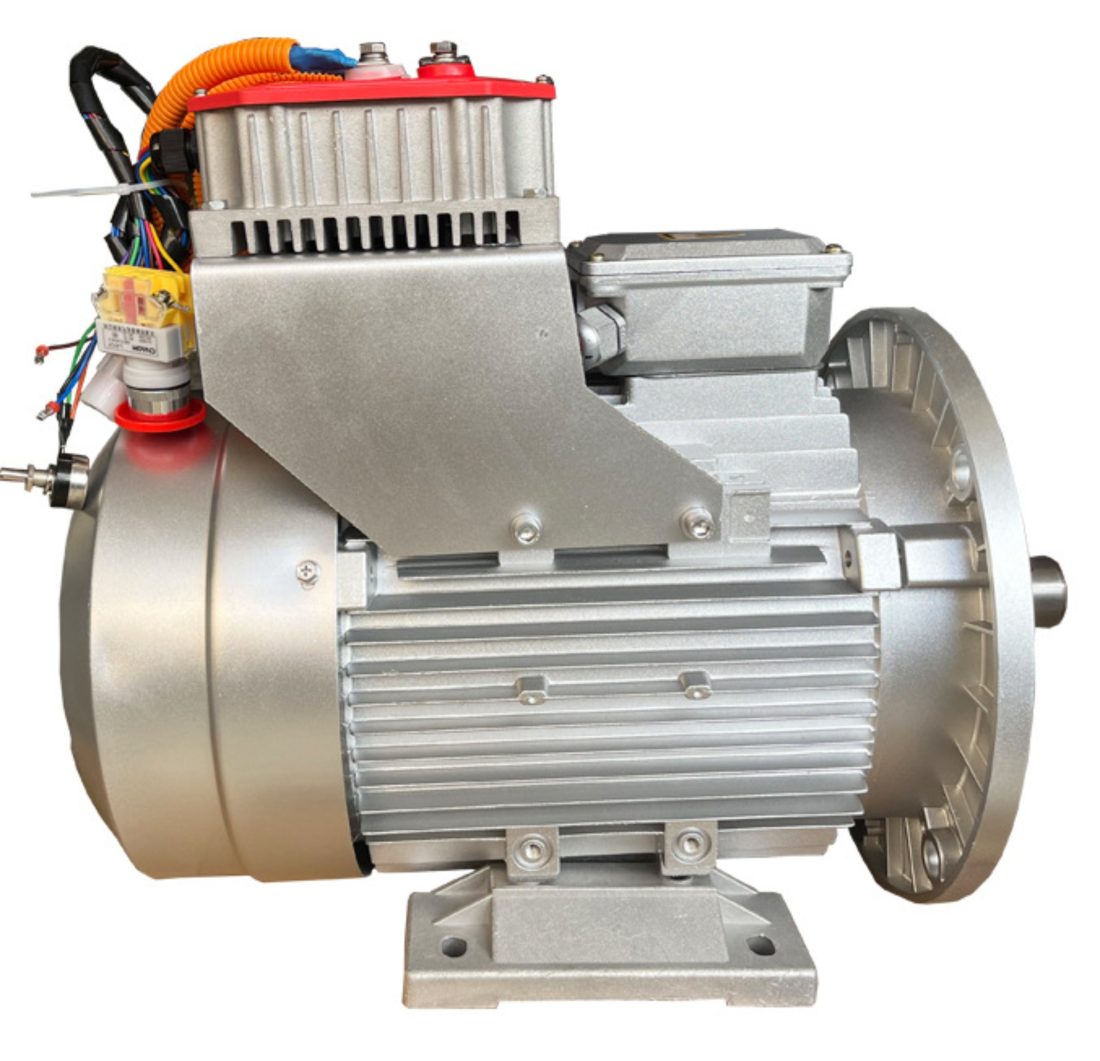

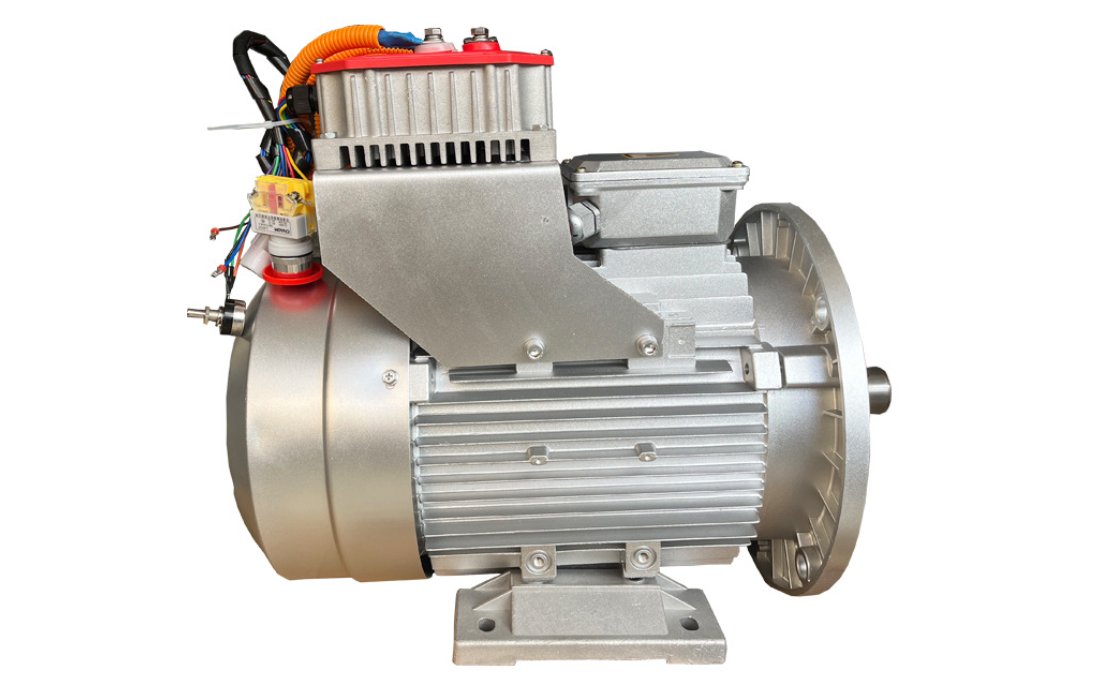

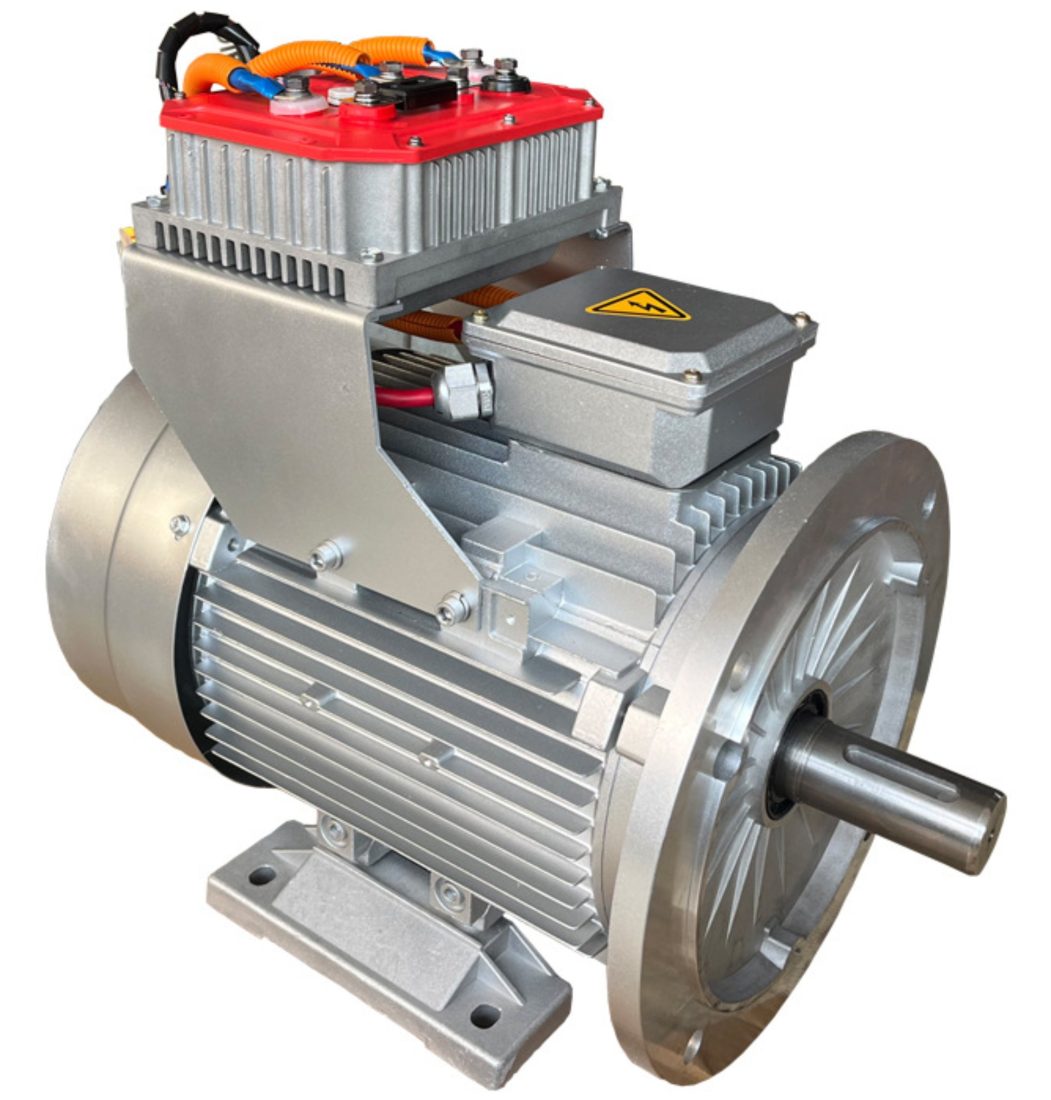

Product Picture
Origin: China
MOQ: 1 Pc
Delivery Time: 7 Days
Transportation: DHL, FedEx, UPS, Air, Sea
Payment Method: T/T, WU
