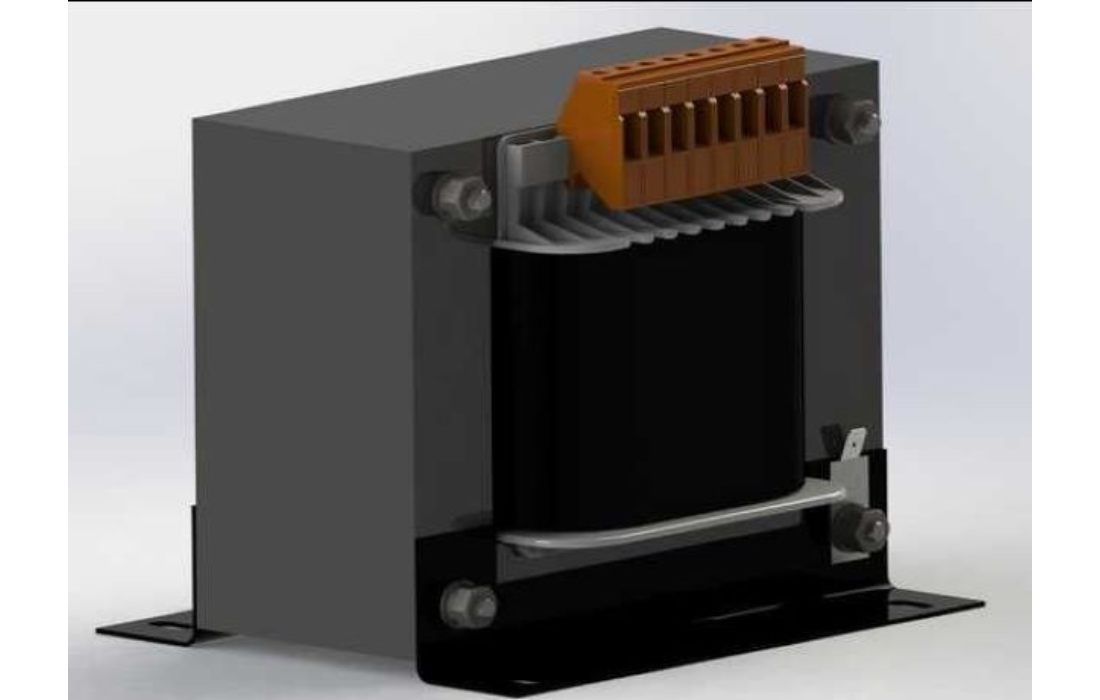

We can supply New Control Transformer JBK5 Series at best price.

The connection between the iron core of the JBK5 series machine tool control transformer, and the connection between the iron core and the clamp (mounting piece) are all welded by gas shielded argon arc to form a whole, making its structure extremely reasonable and reliable. The mounting piece is made of one-time molding, and its installation size is more accurate than that of the JBK3 series. The grounding wafer is made of high-quality anti-corrosion alloy material, which greatly improves the reliability of grounding, and has the characteristics of reliable operation, low energy consumption, small size, safe wiring, and wide applicability.

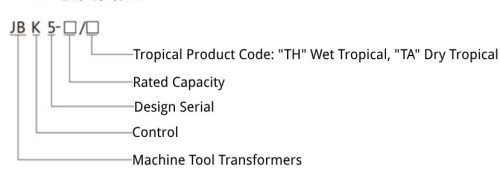

Selection Data

Features

JBK5 series machine tool control transformer is based on the domestic JBK3 series machine tool control transformer, after years of further absorbing the advantages of similar products at home and abroad, and optimizing the terminal of foreign advanced methods, the wiring mode can improve the wiring density.
The connection between the transformer core, the connection between the core and the clamp are all welded by gas arc to form a whole, making the structure extremely reasonable and reliable. The mounting piece is made of one-time molding, and its installation size is more accurate than that of the JBK3 series. The grounding wafer is made of high-quality anti-corrosion alloy material, which greatly improves the reliability of grounding, and has the characteristics of reliable operation, low energy consumption, small volume, safe wiring, and wide applicability.

Application

JBK5 series machine tool control transformer is suitable for AC circuit with a frequency of 50Hz/60Hz, as a mechanical equipment in all walks of life, the control power supply of general electrical appliances, work lighting, and signal lights. Compliant with standard: Q/ZT 205.

Normal working conditions and installation conditions

Transformers are suitable for the following operating conditions:
The altitude does not exceed 2000m.
The upper limit of ambient air temperature is 40 °C, and the lower limit of ambient air temperature is -5 °C (when the user needs to use it in an environment higher than 40 °C or lower than -5 °C, it needs to be specially specified and customized when ordering.) At a maximum temperature of 40 °C, the relative humidity of the air does not exceed 50 percent, and at lower temperatures it is permissible to have a higher relative humidity, e.g. 90 percent at 20 °C, and special measures should be taken for occasional condensation due to temperature changes. The ambient air does not contain harmful gases or dust that are corrosive and damage the insulation; During use, the transformer shall not be eroded by water, rain and snow.
The supply voltage waveform approximates a sine wave.

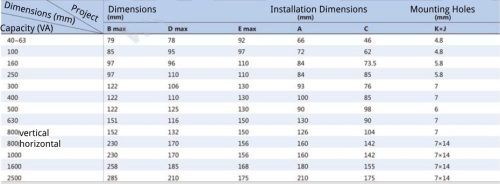

Dimensions

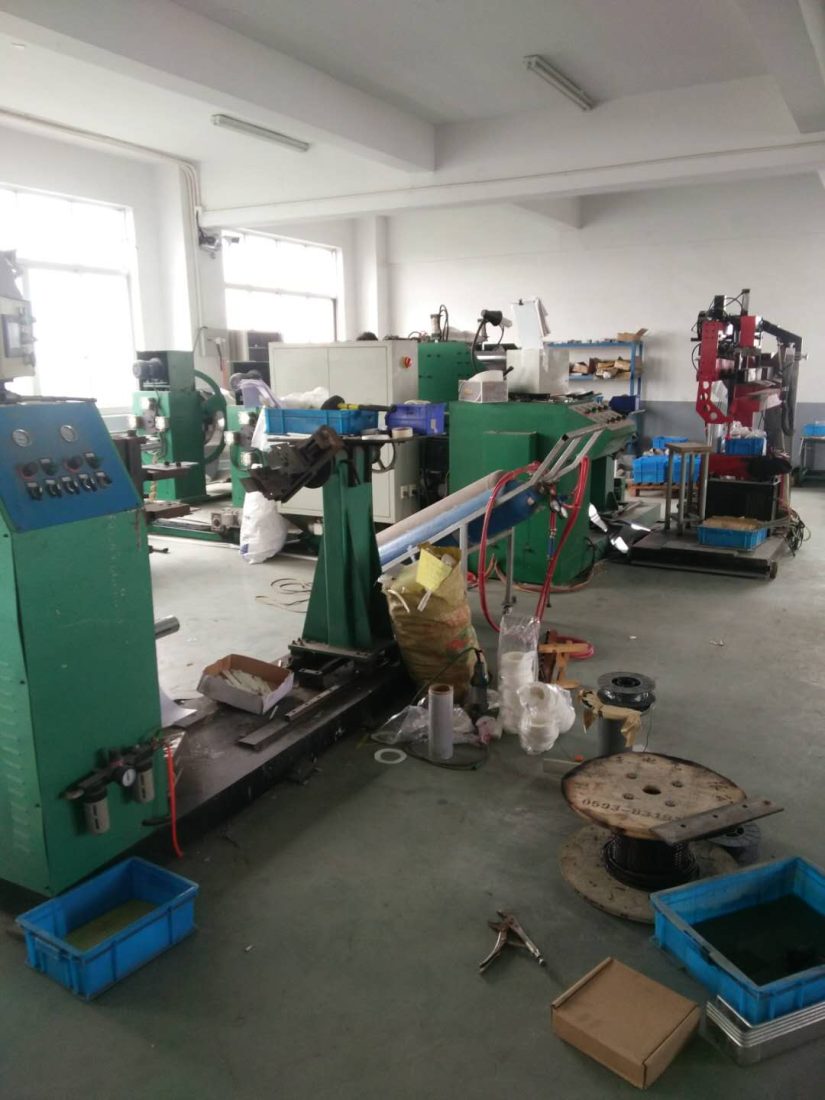

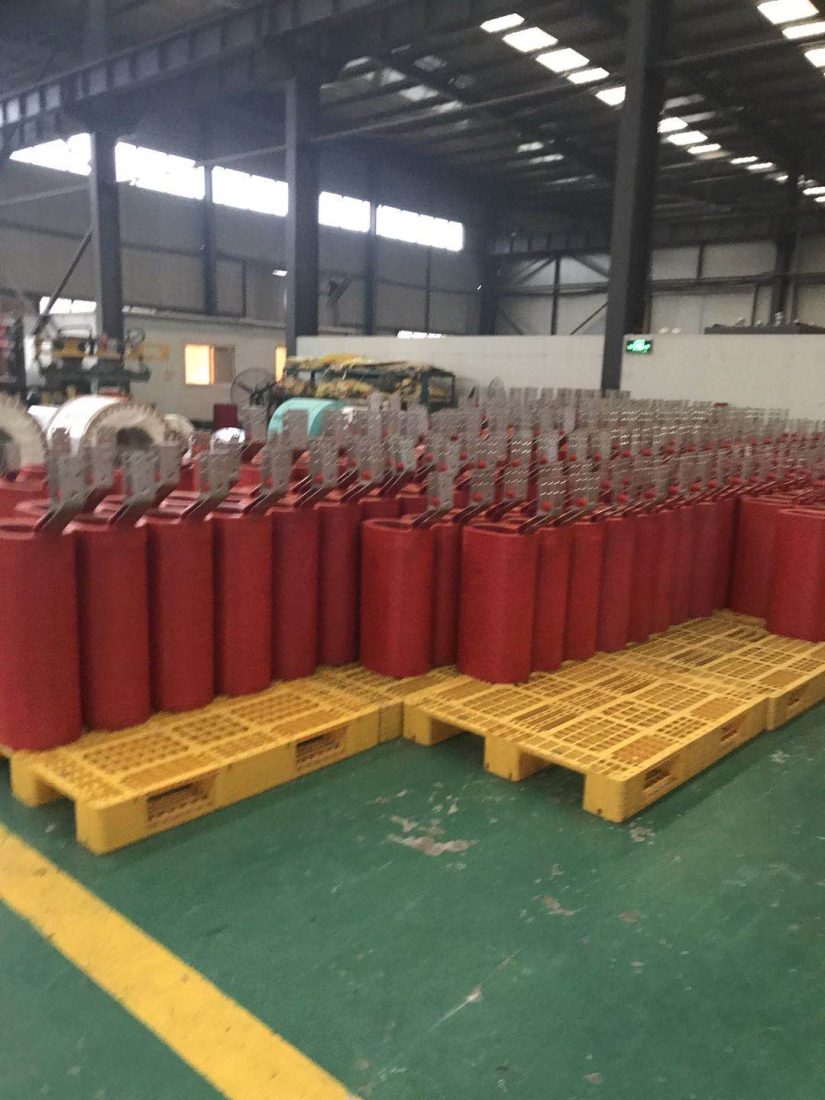

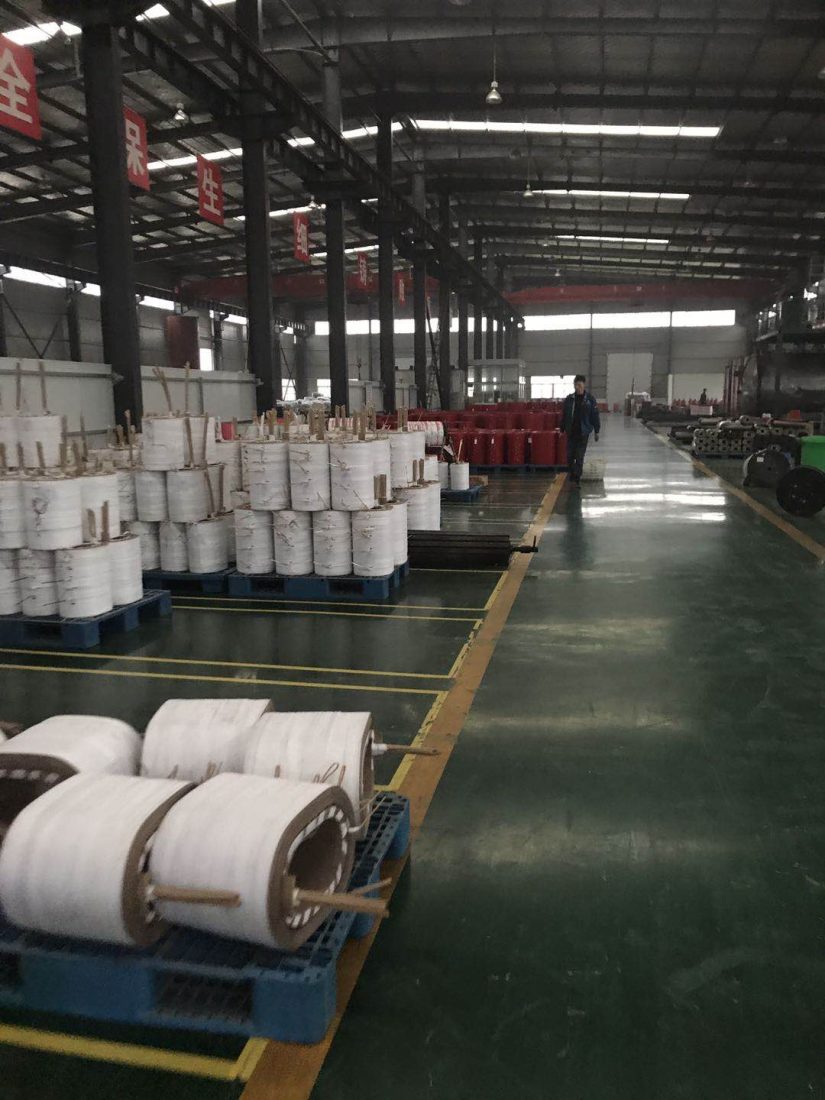

Workshop
