We can supply Pirani Vacuum Gauge Digital Pirani Vacuum Sensor Pirani Gauge Measuring Instrument

Features

Technical Parameter

Measuring range:1.0×10-1~1.0x105Pa(空气,氮气)

Precision:1.0×10^-1~1.0×10⁴pa:+/-15%

1.0×10⁴~1.0×10⁵pa:+/-50%

Repeatability:1.0×10^-1~1.0×10³ pa :+/-2%

1.0×10³~1.0×10⁵ Pa :+/-5%

Withstand pressure (absolute pressure):1.0×10⁵ pa

Response time:＜100ms

Filament baking temperature:Up to 150°C (up to 250°C for metal-type vacuum flanges)

Ambient temperature (operating temperature):0°C~+45°C

Ambient temperature (storage temperature):-40°C~+75°C

Ambient Humidity (Operating Temperature):5…85%, no condensation

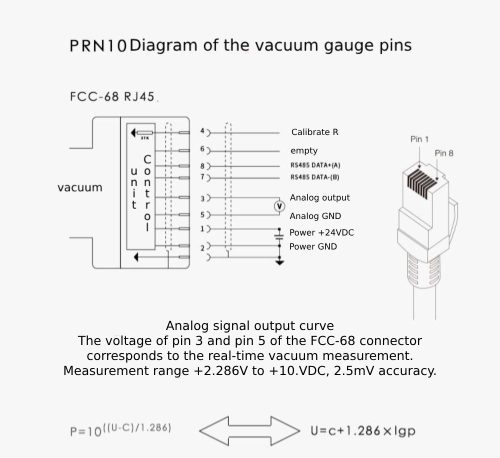

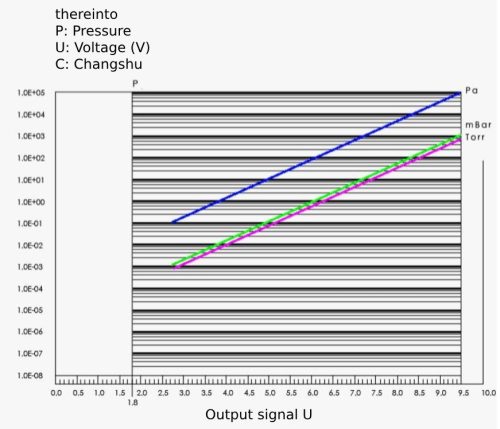

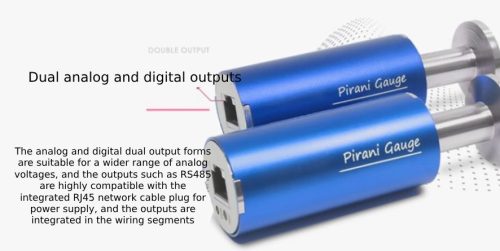

Signal output:RS485 (non-isolated), baud rate 9600 bpS, connected to the vacuum controller WGC150 analog output +2.286V~+10.0V, minimum impedance 10Ω

Power supply：+24VDC (± 20%)/1.5A, broadcasting head through RJ45 Ethernet cable

Maximum power consumption：1.5W. Max

Ingress protection：IP40，IEC529

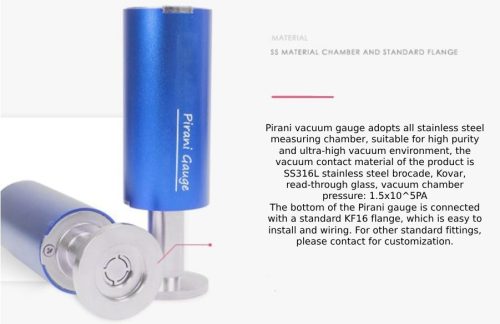

Vacuum system connection：Default: DN 16 ISO-KF: Other

Application

It is suitable for vacuum furnace industry applications, vacuum coating, vacuum packaging, metallurgy, analytical instruments, semiconductors, etc

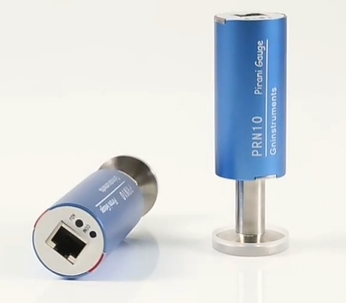

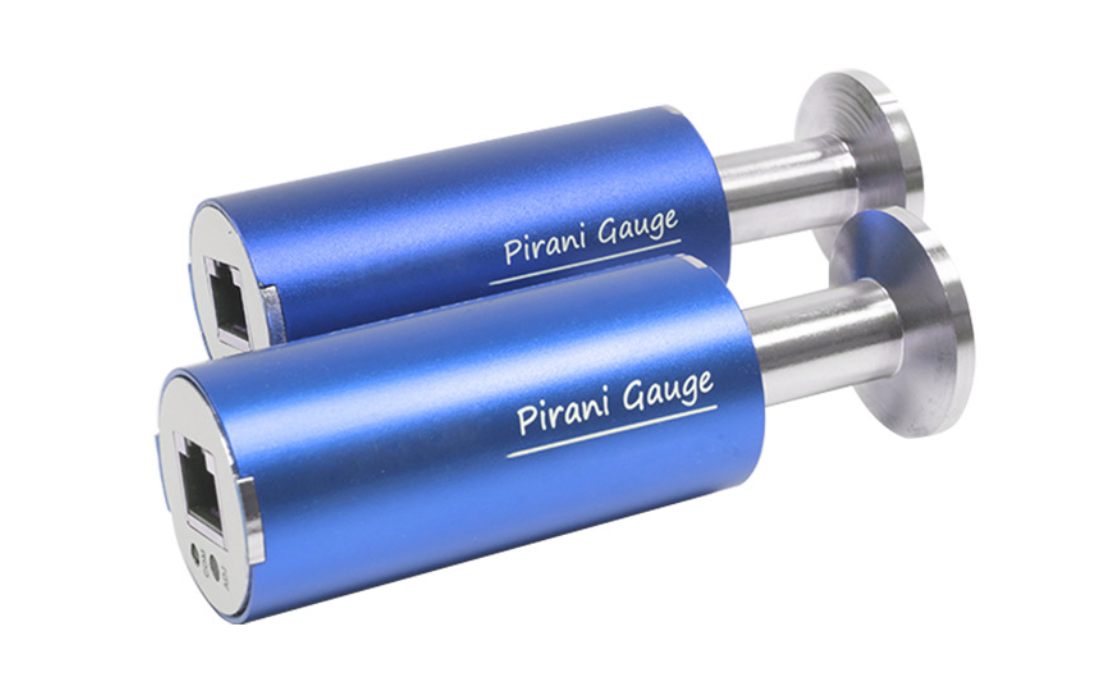

Product Picture
