Pure Sine Wave Inverter High Power Air Conditioner Converter Car Inverter
Description:
We can supply Pure Sine Wave Inverter High Power Air Conditioner Converter Car Inverter 12V/24V to 220V
Technical Parameter
| Machine Model | TP5000W/300W/1000W/500W/2000W/4000W/3000W/1500W | ||
| Output Power | 5000W/300W/1000W/500W/2000W/4000W/3000W/1500W | ||
| Peak Power | 10000W/600W/2000W/1000W/4000W/8000W/6000W/3000W | ||
| Input Voltage | DC 12V/24V/48V/60V can be customized | ||
| Output Voltage | AC 220V | ||
| Output Frequency | 50Hz | ||
| Output Waveform | Pure Sine Wave | ||
| Waveform Distortion | THD<3% (linear load) | ||
| USB Voltage | 5V 1000mA | ||
| Output Efficiency | Up to 94.8% | ||
| Protection Functions | Under Voltage/Over Voltage | LED red light on, shut down and alarm | |
| Overload | LED red light on, lock and alarm off | ||
| Over temperature | LED red light on, shut down and alarm | ||
| Short circuit | LED red light on, shut down and alarm | ||
| Input reverse connection | Diode or MOS tube | ||
| Ambient temperature | -10°~+50° | Start | Bipolar soft start |

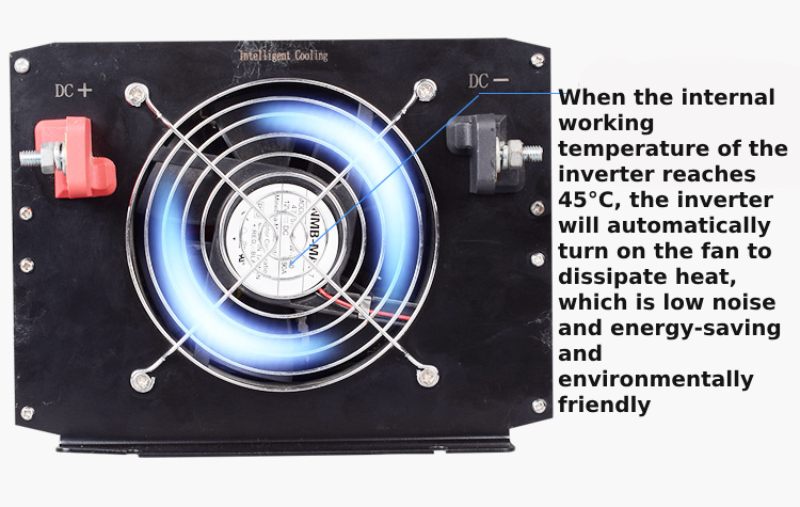

| Storage temperature | -30°~+70° | Cooling | Intelligent air cooling |
| Product dimensions | 450*200*150mm | Net weight / Gross weight | 11.8/12.7KG |
Features
Application
Workshop
Origin: China
MOQ: 1 Pc
Delivery Time: 7 Days
Transportation: DHL, FedEx, UPS, Air, Sea
Payment Method: T/T, WU
