Small Flow Rate 0.5ml/Min Micro Flow Meter Micro Liquid Water Elliptical Gear Flow Meter
Description:
We can supply Small Flow Rate 0.5ml/Min Micro Flow Meter Micro Liquid Water Elliptical Gear Flow Meter
Technical Parameter
FLOWMETER
Medium：Suitable for liquid, weakly corrosive chemical media
For example: water; Oil; Glue; polyurethane, etc
Precision：Standard accuracy +/-0.5%, high viscosity accuracy up to 0.2%
Pressure：The standard withstand pressure is 32 Bar
Accept high pressure customization, high pressure up to 1000Bar
Temperature：The standard temperature range is -30~80°C
The maximum temperature of the stainless steel series is 200°C
Output：Hall & thousand reed pulse output
Power supply：4~26VDC power supply
Stainless steel series material：Housing: SS316L Gear: SS316L Bearing: SS316L
Medium：Suitable for weakly corrosive liquids; For example: water; polyurethane
Aluminum alloy series material：Housing: anodized aluminum gear: anodized aluminum bearing: SS316L
Medium：No corrosive liquids; For example: gasoline; Aviation kerosene
CX-M Flow Range
| Model | Flow Range | Connection Size | Pulse Factor |
| CX-M2 | 0.5~150ML/MIN | G1/8″Female threads | 0.06ML/P |
| CX-M3 | 3~300ML/MIN | G1/8″Female threads | 0.14ML/P |
| CX-M5 | 5~1000ML/MIN | G1/8″Female threads | 0.36ML/P |
| CX-M6 | 0.5~100L/H | G1/4″Female threads | 1ML/P |
| CX-M9 | 6~600L/H | G1/4″Female threads | 5ML/P |
| CX-M12 | 0.3~30L/MIN | G1/2″Female threads | 17.50ML/P |
| CX-M5.1 | 0.5~100L/MIN | G1″Female threads | 45ML/P |
Features
Application

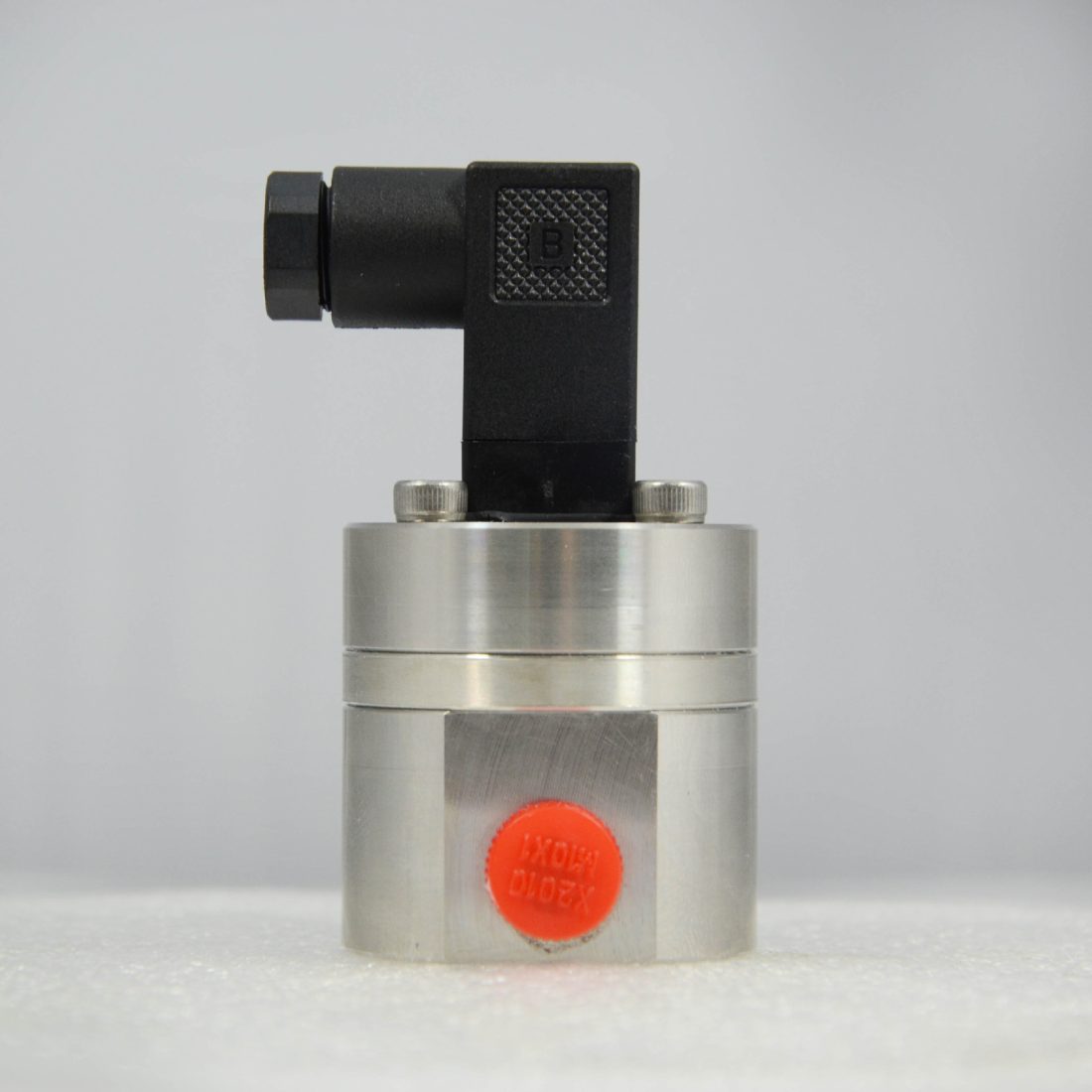

Product Picture

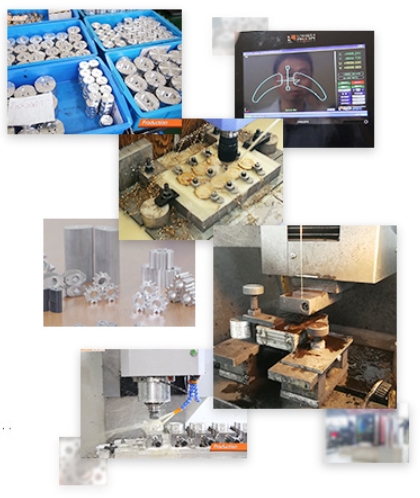

Workshop
