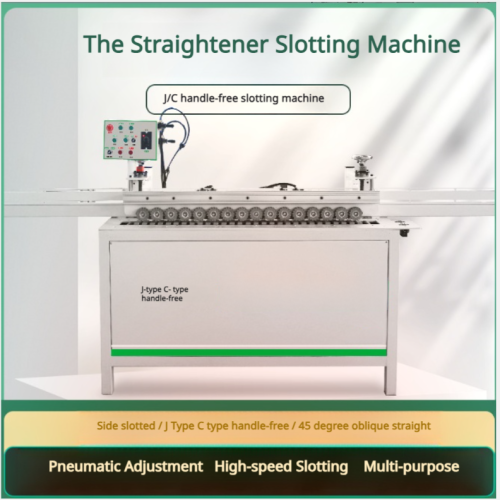

The Straightener Slotting Machine / Fully Automatic J type C type handle-free slotting machine / Automatic Straightening Grooving Machine / CNC Woodworking Automatic Slotting Machines
Description:
The Straightener Slotting Machine we provide are widely used in various industries, such as furniture manufacturing, woodworking industry, cabinet making, production of handles and side slots, etc.
Product and Technical Parameter

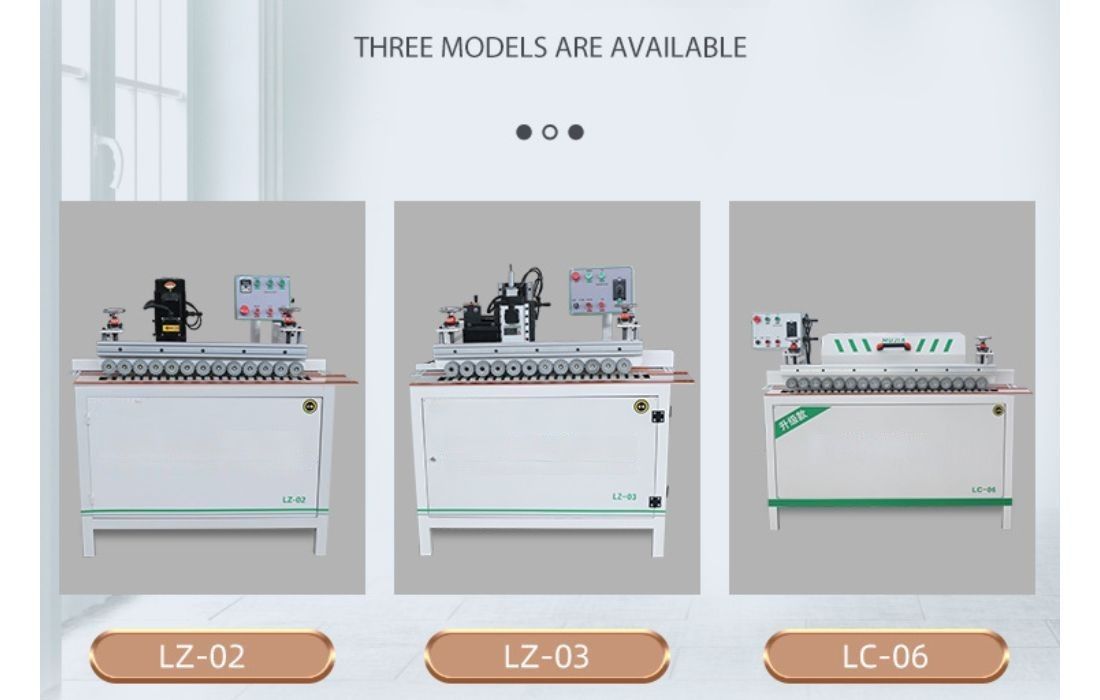

| Name | Automatic Straightening Grooving Machine |

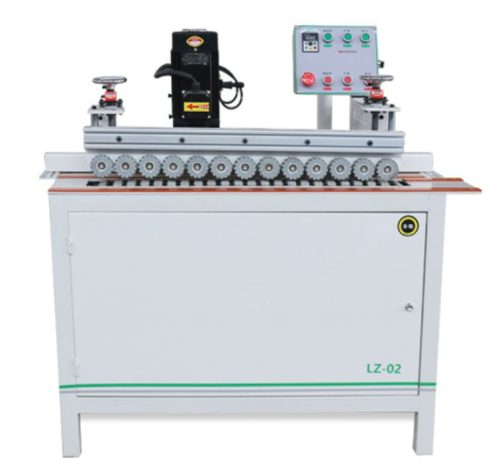

| Model NO. | LZ-02 |
| Category | Wood Slotting Machine |
| Working Method | Fully Automatic |
| Voltage | 380V |
| Frequency | 300-400HZ |
| Total Power | 6.5KW |

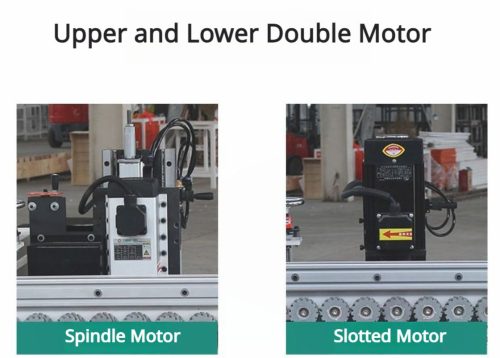

| Hight-speed Spindle Motor Power | 2.2KW |
| Rotating Speed | 24000r/min |

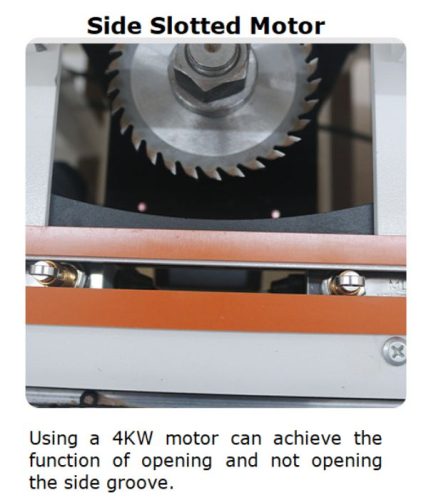

| Slotting Motor Power | 4KW |
| Rotating Speed | 2800r/min |
| Drilling Diameter | 1.27CM |
| Machine Size | 125*71*124CM |
| Board Thickness | 1.5-5CM |
| Grooving Depth | 0-4CM |
| Machine Weight | 220KG |
| Functions | Milling edge grooving, straightener grooving, side slotting (open & not open) |

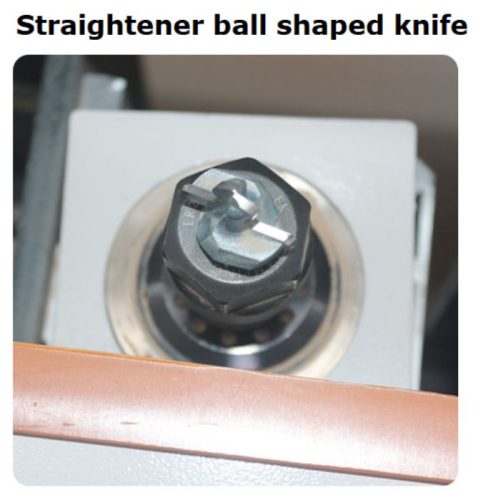

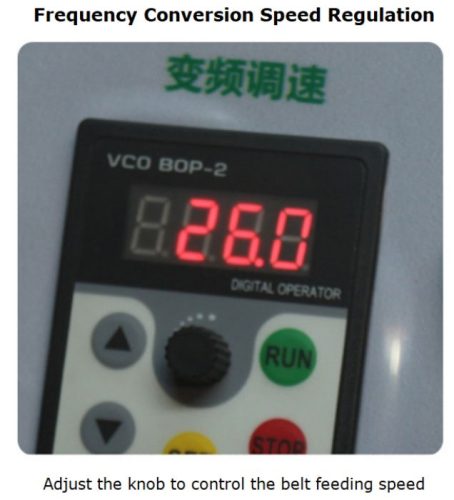

| Features | Using dual frequency converter control, the start and stop speed of the conveyor belt is smoother. The straightener main shaft adopts a high-speed main shaft with 24,000 rotations, which is stable in performance. |
| Name | Automatic Straightening Grooving Machine |

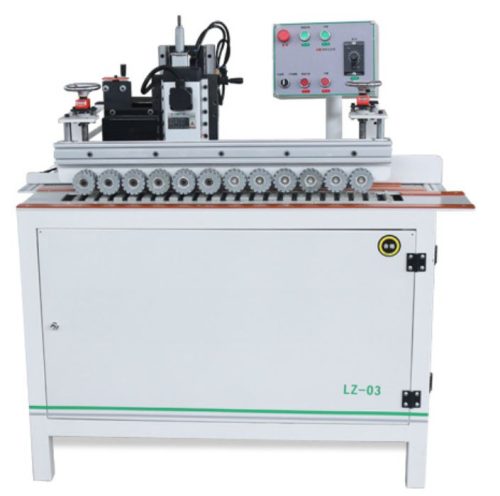

| Model NO. | LZ-03 |
| Category | Wood Slotting Machine |
| Working Method | Fully Automatic |
| Voltage | 380V |
| Frequency | 300-400HZ |
| Total Power | 6.5KW |
| Hight-speed Spindle Motor Power | 2.2KW |
| Rotating Speed | 24000r/min |
| Slotting Motor Power | 4KW |
| Rotating Speed | 2800r/min |
| Drilling Diameter | 1.27CM |
| Machine Size | 125*71*124CM |
| Board Thickness | 1.8-5CM |
| Grooving Depth | 0-2CM |
| Machine Weight | 220KG |
| Functions | Milling edge grooving, straightener grooving, side slotting (open & not open) |
| Features | Using frequency converter control, the straightener main shaft adopts a high-speed main shaft with 24,000 rotations, which is stable in performance. |
| Name | Automatic Straightening Grooving Machine |
| Model NO. | LZ-06 |
| Category | Wood Slotting Machine |
| Working Method | Fully Automatic |
| Voltage | 380V |
| Frequency | 300-400HZ |
| Total Power | 7.8KW |
| Hight-speed Spindle Motor Power | 3.5KW |
| Rotating Speed | 18000r/min |
| Slotting Motor Power | 4KW |
| Rotating Speed | 2800r/min |
| Drilling Diameter | 1.27CM |
| Machine Size | 150*72*126CM |
| Board Thickness | 1.8-5CM |
| Grooving Depth | 0-2CM |
| Machine Weight | 230KG |
| Functions | Milling edge grooving, straightener grooving, side grooving |
| Features | Dual pneumatic adjustment. Using frequency converter control, the straightener main shaft adopts a high-speed main shaft with 24,000 rotations, which is stable in performance. |

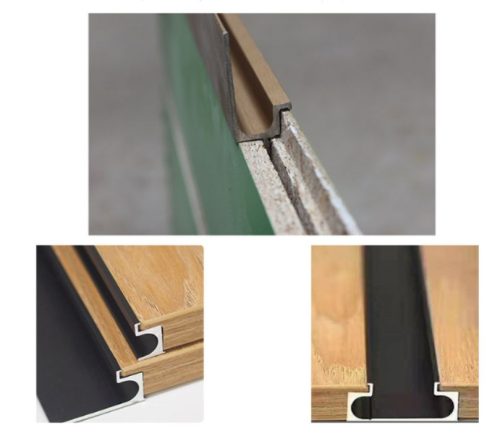

Application
Widely used in furniture manufacturing, woodworking industry, cabinet making, production of handles and side slots, etc.

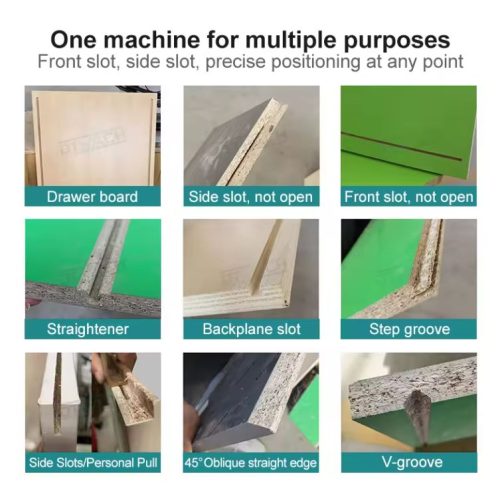

Functions

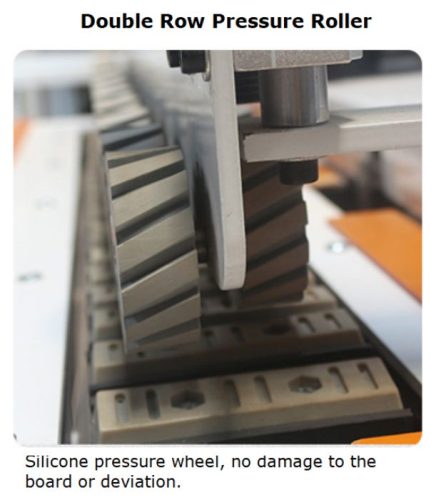

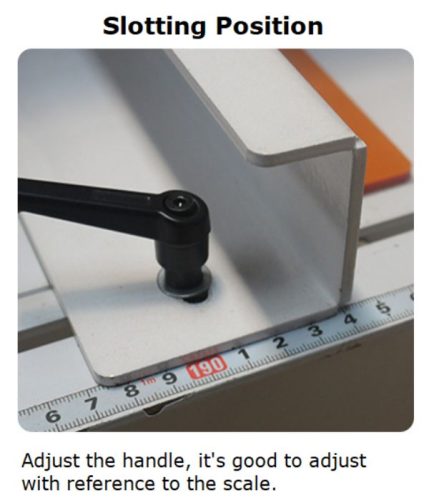

Product Details
Workshop
Origin: China
MOQ: 1 Pc
Delivery Time: 7 Days
Transportation: DHL, FedEx, UPS, Air, Sea
Payment Method: T/T, WU
