Three Phase High Power Automatic Voltage Regulator /AC Voltage Stabilizer

May 27, 2024

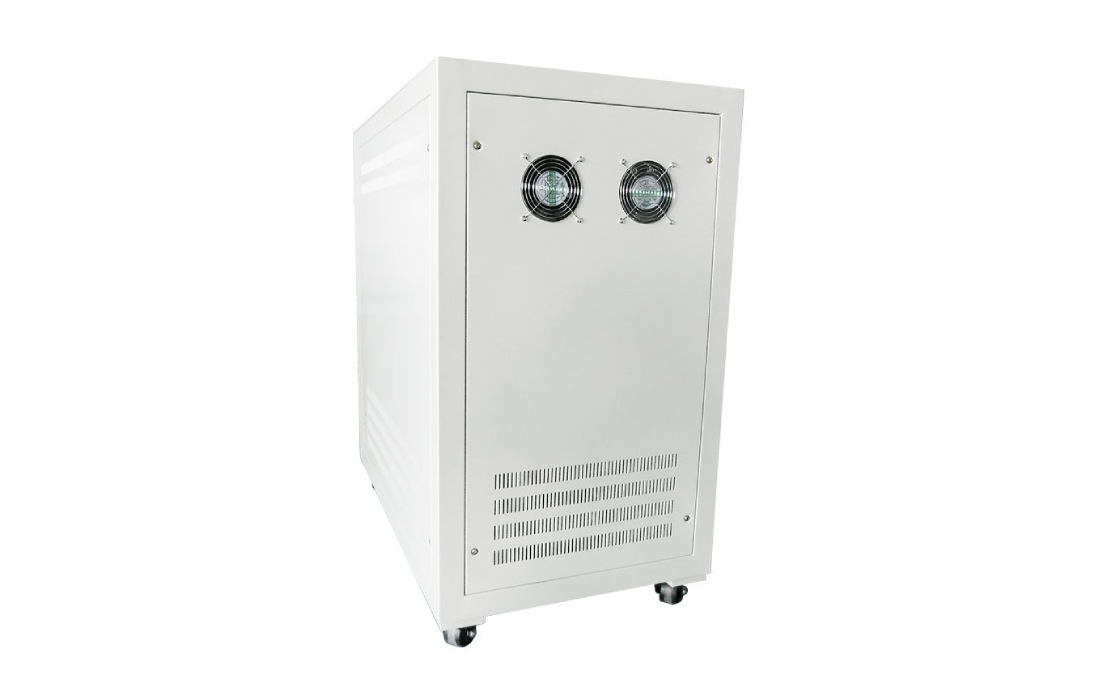

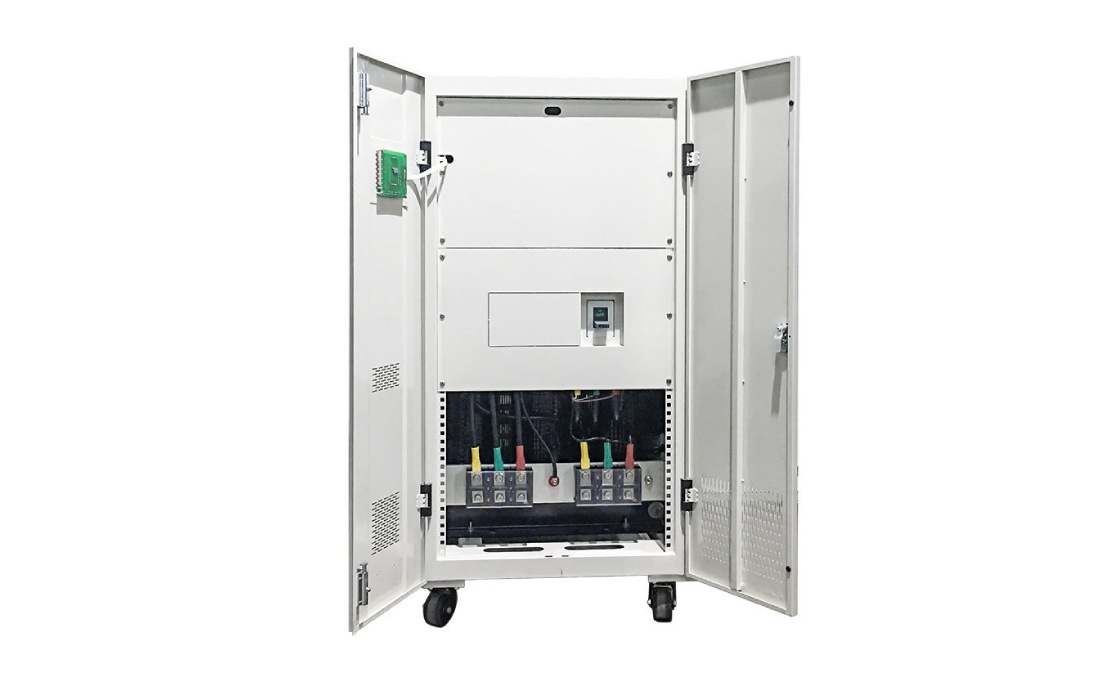

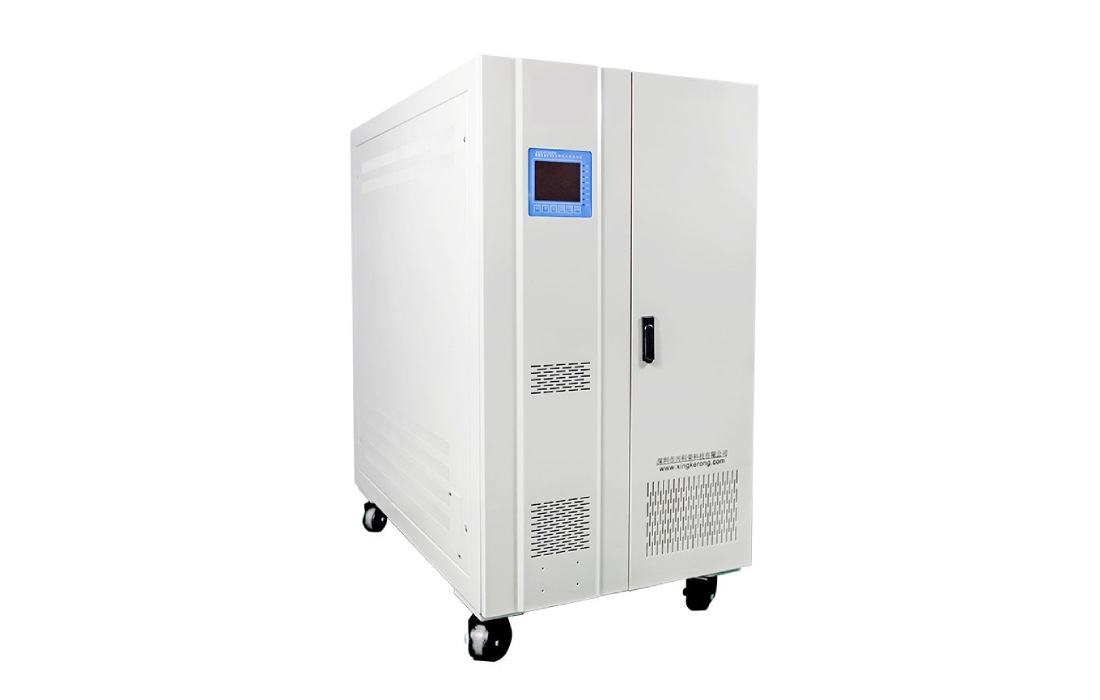

Three Phase High Power Automatic Voltage Regulator SBW-500KVA

Description:

We can provide a variety of power products such as voltage stabilizers, transformers, UPS uninterruptible power supplies, variable frequency power supplies, inverter power supplies, etc.

The SBWZ series of uncompensated power voltage regulators /stabilizers are designed by our company to stabilize AC voltage by introducing advanced technology from Western Europe and combining it with China national conditions. Compared with other types of voltage regualtors /stabilizers, this series of products has the advantages of large capacity, high efficiency, no progressive distortion, and stable voltage regulation. It is suitable for a wide range of loads, can withstand instant overload, can work continuously for a long time, and can be switched between manual and automatic at will. It has overvoltage and overcurrent, phase loss, phase sequence protection and automatic storage of information faults. What is more, it has advantages of small size, light weight, easy use and installation, and reliable operation.

Technical Parameter

AC Input Phases	3 phases	AC Output Phases	3 phases
AC Input Frequency	50/60HZ	AC Output Frequency	50/60HZ
Voltage Stabilization Accuracy	1-2%V (can be set and the factory value is generally set to 2%)	Load Work	Can continuously operate at 80% load
Efficiency	Greater than 98%	Insulation Withstand Voltage	2500V/min without breakdown
Regulator Type	SCR silicon controlled thyristor, single chip microcomputer controlled three-phase regulation technology	Insulation Level	Class B
Cooling Method	Dry self-cooling	Dielectric Strength	2500VAC/min
Noise	≤60db (excluding forced air cooling system)	Temperature Rise	≤75℃
Protective Function	With overvoltage, undervoltage, overcurrent, short circuit, phase loss fuction	Temperature	-10~35℃
Relative Humidity	15~85%(25°c)	Altitude	<1500m
Warranty Period	12 months	After-Sales Service	24-hour service
Certificate	CE, ROHS

Model	Capacity	Switch (CHINT)	Input Votage	Output Voltage	Output Current	Size(mm)	Weight(kg)
SBW-80	80KVA	3P160A	304V-456V	380V	120A	750x550x1120	310
SBW-100	100KVA	3P160A	304V-456V	380V	151A	750x550x1120	380
SBW-150	150KVA	3P225A	304V-456V	380V	227A	850x600x1300	430
SBW-200	200KVA	3P315A	304V-456V	380V	302A	850x600x1300	680
SBW-250	250KVA	3P400A	304V-456V	380V	380A	1100x700x1500	800
SBW-300	300KVA	3P500A	304V-456V	380V	453A	1100x700x1500	950
SBW-400	400KVA	3P630A	304V-456V	380V	604A	1200x800x1700	1120
SBW-500	500KVA	3P800A	304V-456V	380V	755A	1200x800x1700	1280

Top ten features

Touch screen color display

Fault alarm display
Voltage can be set
Precision can be set
Current can be set
Automatic bypass function
Remote communication function
Efficiency, high performance and stability
No mechanical wear
Fast response time

Product Detail

1.Intelligent Voltage Stabilization

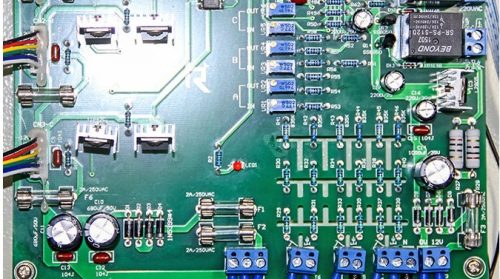

2.Smart Motherboard

Adopts new CPU computer control motherboard, intelligently adjusts voltage, has overvoltage /undervoltage /overcurrent multiple protection functions, and automatic bypass function.
