We can supply Three-Phase Intelligent Online Soft Starter/Cabinet 22/30/45/55/75kw Motor Water Pump Bypass Soft Start Cabinet

Technical Parameter

Online soft starter cabinet product parameters

Product parameters next to the soft starter cabinet

Features

Thyristor work
The online soft start cabinet is a thyristor working bypass type soft start cabinet is a soft start after starting the motor, switching the AC contactor to work.
Long hours of operation
The online type can be operated frequently, and it can work for a long time, but the bypass type cannot, and it is easy to burn the soft starter, because the bypass soft starter is not equipped with a fan, and the radiator area is small, which is not suitable for frequent starting;
Cooling fan
The online soft start cabinet has a cooling fan, but the bypass soft start cabinet does not, and their external structure is similar; It’s just that there is a difference in the internal structure;
More resistant to dirt
The switch has no contact and no arc in the whole process of online product operation, especially in the case of harsh environment, it is more resistant to dirt, and non-online is not good;
Not affected by voltage
The on-line type is not affected by voltage, and the voltage of the bypass type soft start cabinet is too high and too low to burn out the contactor;
No bypass contactor is required
The online soft start cabinet does not need a bypass contactor, no sparks and arcs are generated during starting, and there is no need to consume the contact capacity of the contactor, the service life of the starting cabinet is greatly extended, and the maintenance cost is greatly reduced.

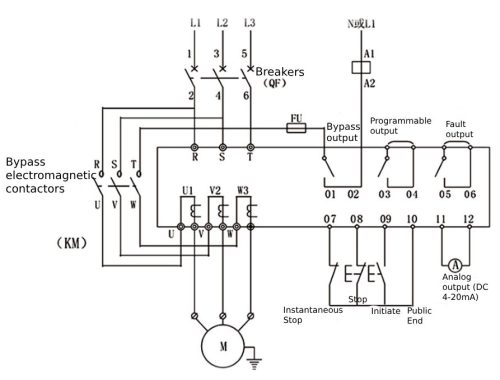

Inverter Schematic Diagram

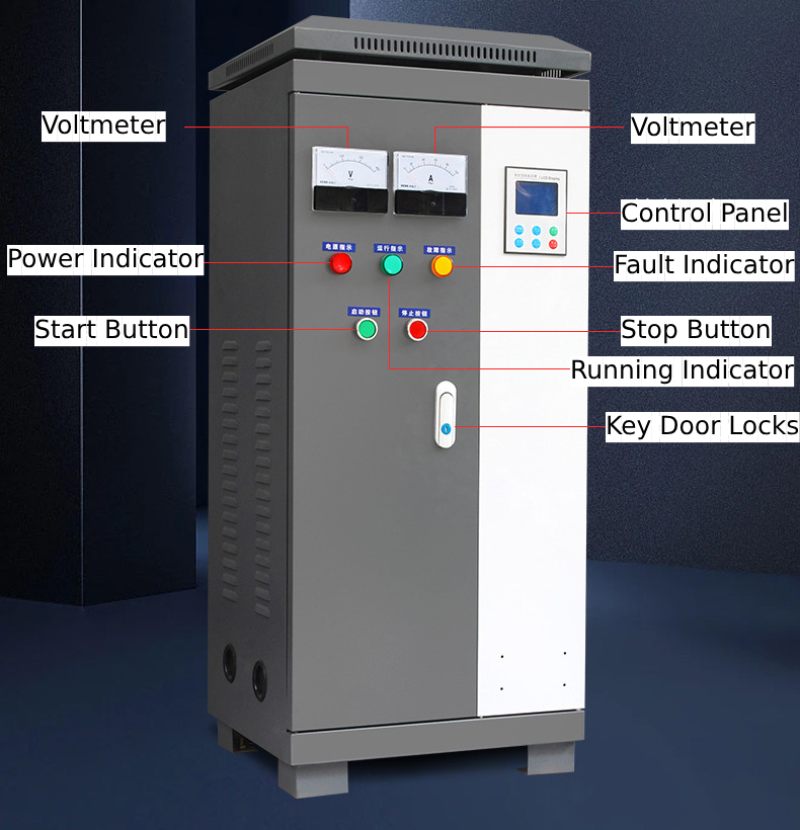

Introduction to the Operator Panel

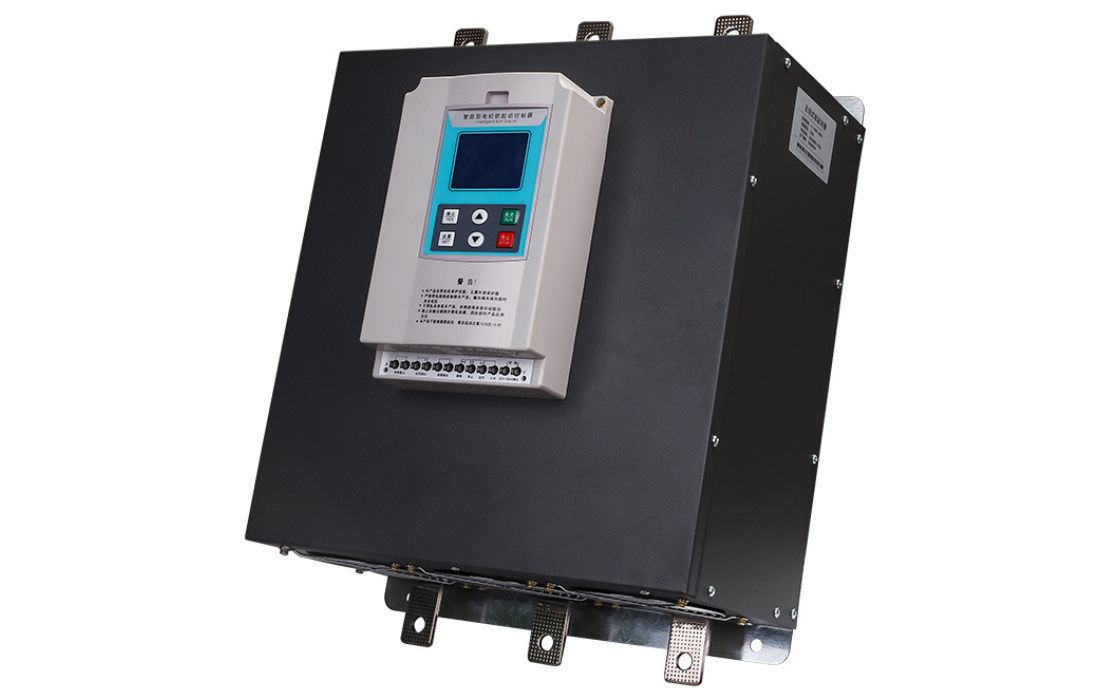

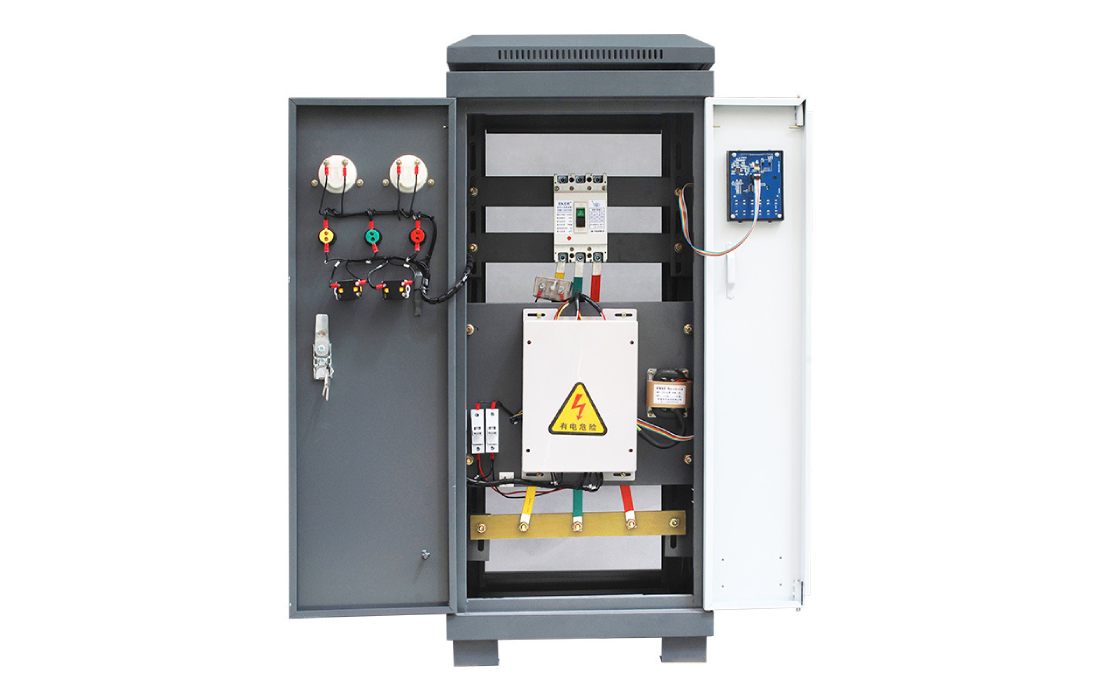

Product Picture

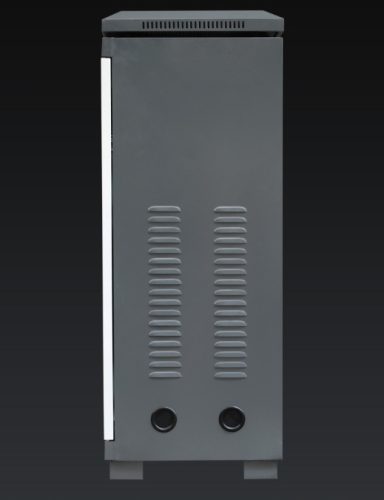

Grille ventilation and heat dissipation holes

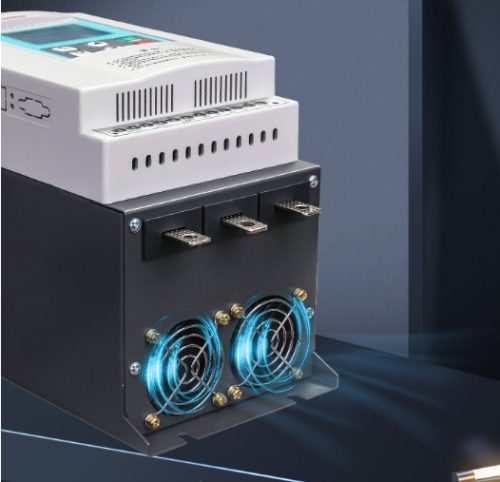

Strong cooling fan cooling function

Certificates

Workshop
