Wind Pressure Transmitter, Gas Micro Differential Pressure, Negative Pressure, Differential Pressure Gauge, Fan Pressure, Air Duct, Furnace Digital Differential Pressure Difference
Description:
We can supply Wind Pressure Transmitter, Gas Micro Differential Pressure, Negative Pressure, Differential Pressure Gauge, Fan Pressure, Air Duct, Furnace Digital Differential Pressure Difference
Technical Parameter
| Measurement Range | -100Kpa-0-100Mpa (Customizable) |
| Output Signal | 4-20mA、0-10V、0-5V、RS485 |
| Pressure Interface | Baota Nozzle 8mm (Default), 6mm |
| Temperature Range | -20℃-150℃ |
| Supply Voltage | 12-36VDC（24VDC) |
| Overload Pressure | 150%FS |
| Measurement Accuracy | 0.25%FS、0.5%FS |
| Sealing Level | IP65 |
| Power Supply | 12-24VDC (Default), 5V, 3.6V, etc. |
| Compensation Temperature | -10~80℃ |
| Long-term Stability | ±0.2%FS/year |
| Response Time | ≤1ms |
| Compatible Media | Non-corrosive Gases |

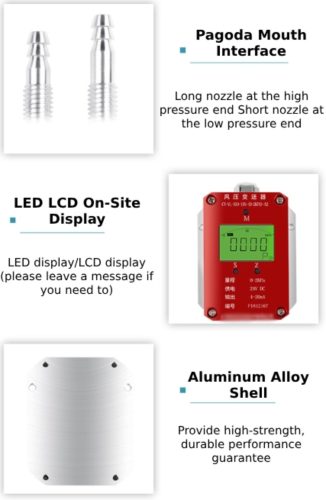

Features

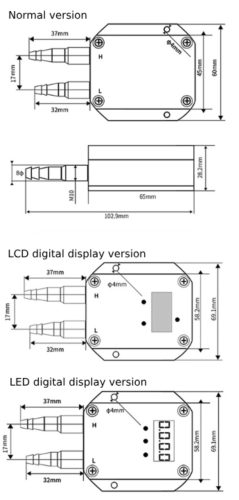

Product Dimensions
Unit: mm

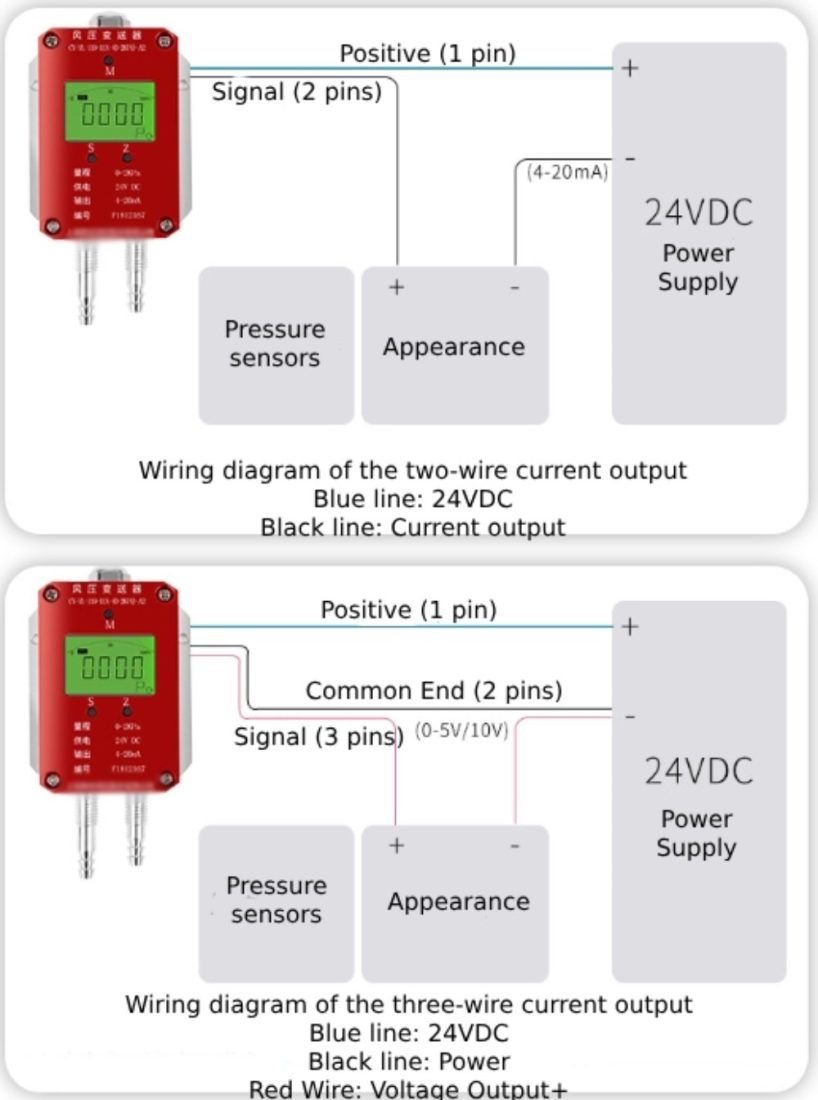

Product Wiring Diagram

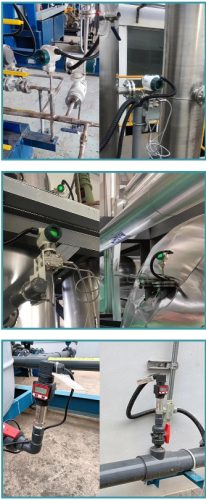

Application

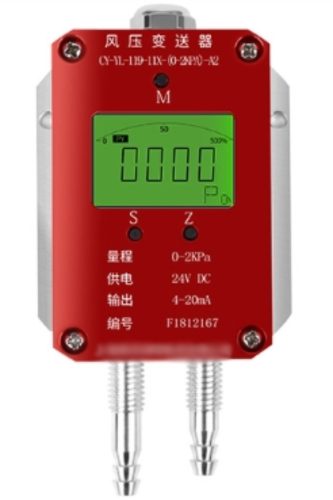

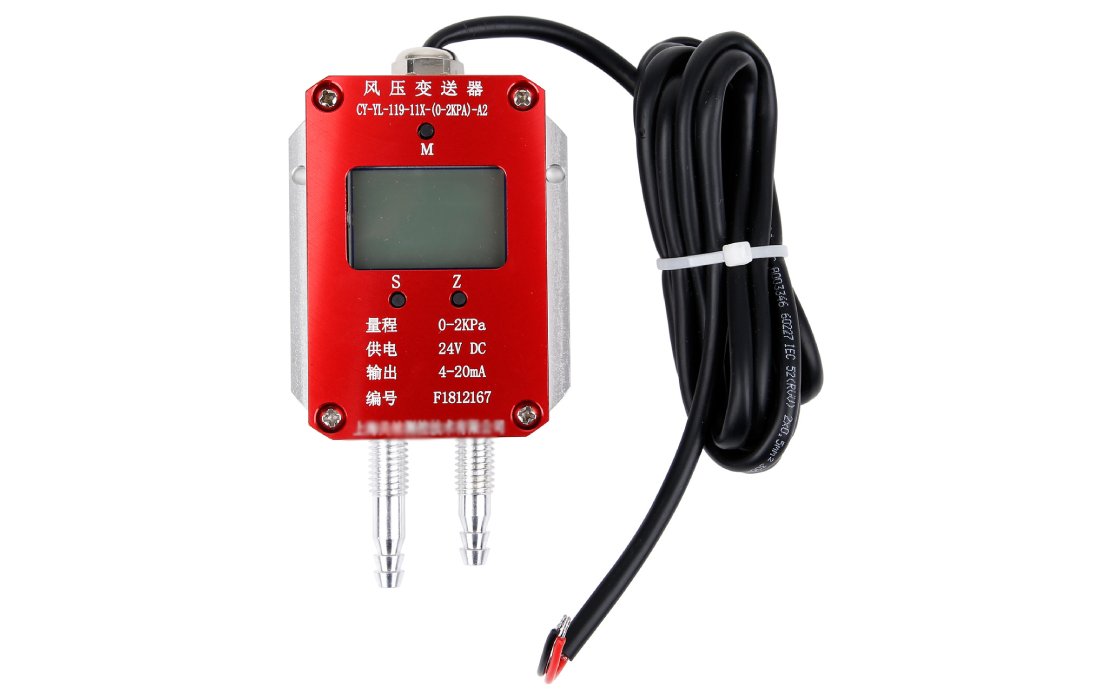

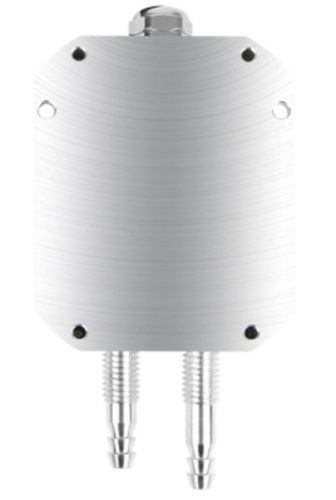

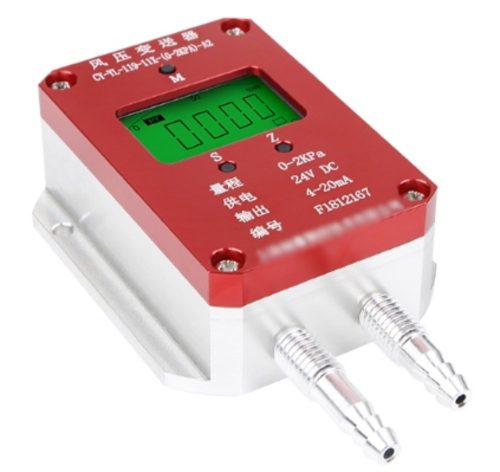

Product Picture
Certificates
Origin: China
MOQ: 1 Pc
Delivery Time: 7 Days
Transportation: DHL, FedEx, UPS, Air, Sea
Payment Method: T/T, WU
