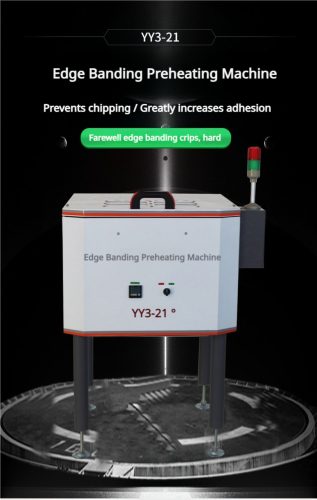

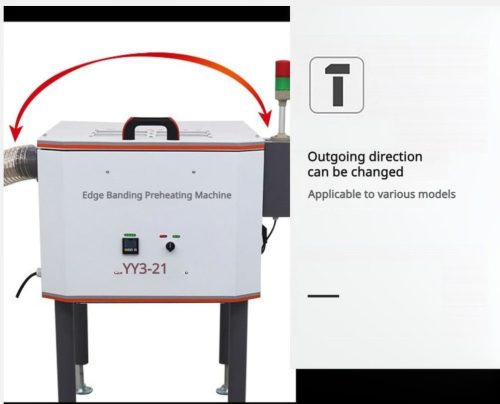

YY3 Woodworking Edge Banding Preheating Machine / Automatic Constant Temperature / Edge Banding with Temperature-adjustable Edge Banding Machine Heater
Description:
The edge banding preheating machine we provide are widely used in various industries, such as Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, etc.
Product and Technical Parameter

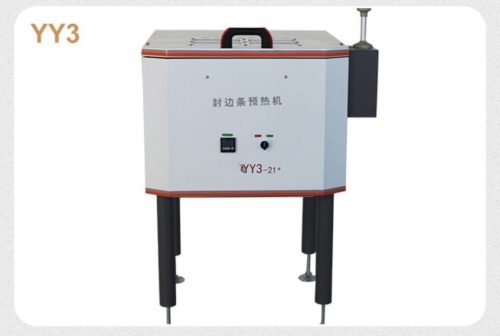

| Name | Edge Banding Preheating Machine |
| Model No. | YY3 |
| Voltage | 380V / 50HZ / 3phase |
| Motor | 380V 370W three-phase four-wire |
| Total Heating Power | 4.5KW |
| Bar Diameter | 650MM |
| Setting Temperature | 0-60℃ |
| Width of Strips | 0-80MM |
| Thickness of Strips | 0.3-3MM |
| Alarm Device | 2 color sound and light alarm |
| Weight | 75KG |
| Edge Banding Type | PVC, Plastic, ABS, Acrylic, Wood, etc. |
| Package Size | 800MM*730MM* (1225-1325)MM |

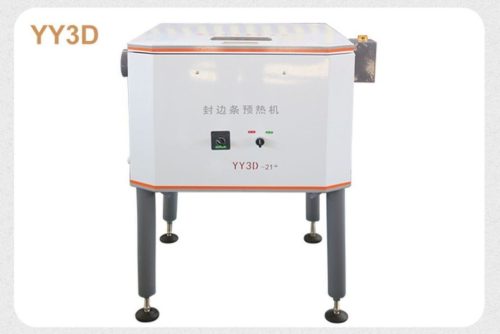

| Name | Edge Banding Preheating Machine |
| Model No. | YY3D |
| Voltage | 380V / 50HZ / 3phase |
| Motor | 380V 750W three-phase four-wire |
| Total Heating Power | 3.1KW |
| Bar Diameter | 650MM |
| Setting Temperature | 0-60℃ |
| Width of Strips | 0-80MM |
| Thickness of Strips | 0.3-3MM |
| Alarm Device | Single color sound and light alarm |
| Weight | 70KG |
| Edge Banding Type | PVC, Plastic, ABS, Acrylic, Wood, etc. |
| Package Size | 800MM*730MM* (1000-1100)MM |
| Name | Edge Banding Preheating Machine |

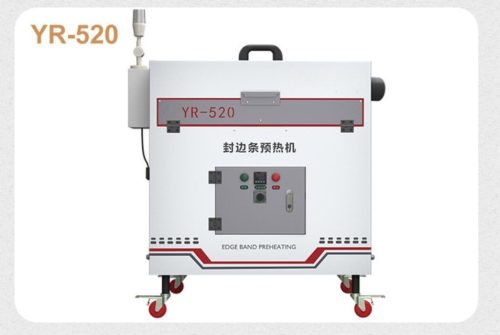

| Model No. | YR-520 |
| Voltage | 380V / 50HZ / 3phase |
| Motor | 380V 750W three-phase four-wire |
| Total Heating Power | 7KWÂ Low Range2.8KWÂ Mid Range4.9KWÂ High Range7KW |
| Bar Diameter | 800MM |
| Setting Temperature | 0-80℃ |
| Width of Strips | 0-80MM |
| Thickness of Strips | 0.3-5MM |
| Alarm Device | Three-color sound and light alarm |
| Weight | 180KG |
| Edge Banding Type | PVC, Plastic, ABS, Acrylic, Wood, etc. |
| Package Size | 1050MM*880MM* (1230-1330)MM |
Product Comparison
| Model No. | YY3 | YY3D | YR-520 |
| Voltage | 380V / 50HZ / 3phase | 380V / 50HZ / 3phase | 380V / 50HZ / 3phase |
| Motor | 380V 370W three-phase four-wire | 380V 750W three-phase four-wire | 380V 750W three-phase four-wire |
| Total Heating Power | 4.5KW | 3.1KW | 7KW |

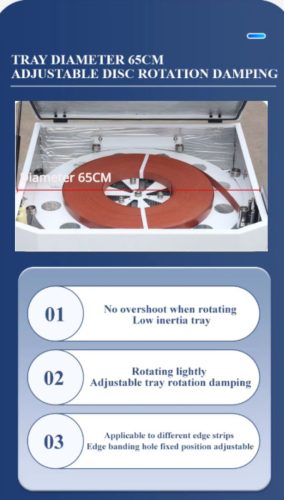

| Bar Diameter | 650MM | 650MM | 800MM |
| Setting Temperature | 0-60℃ | 0-60℃ | 0-80℃ |
| Width of Strips | 0-80MM | 0-80MM | 0-80MM |
| Thickness of Strips | 0.3-3MM | 0.3-3MM | 0.3-5MM |

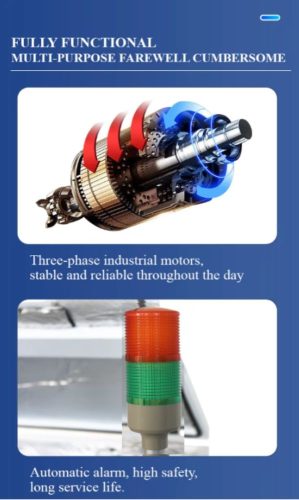

| Alarm Device | 2-color sound and light alarm | Single color sound and light alarm | Three-color sound and light alarm |
| Weight | 75KG | 70KG | 180KG |

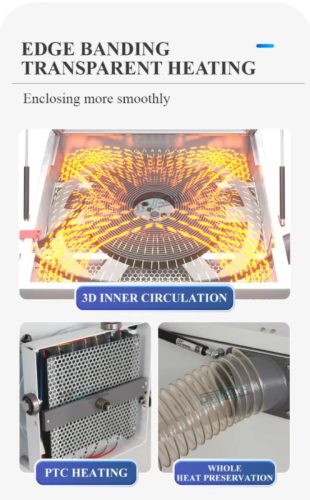

| Heating Method | PTC ceramic heating | PTC ceramic heating | PTC ceramic heating |
| Package Size | 800MM*730MM* (1225-1325)MM | 800MM*730MM* (1000-1100)MM | 1050MM*880MM* (1230-1330)MM |

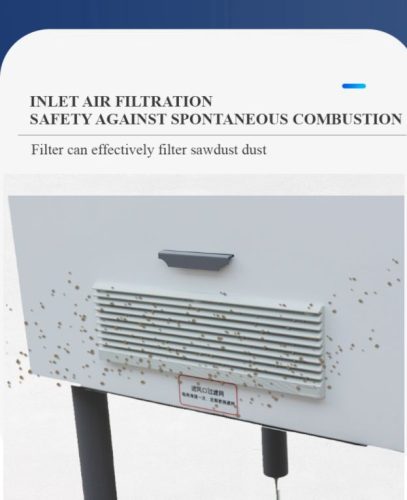

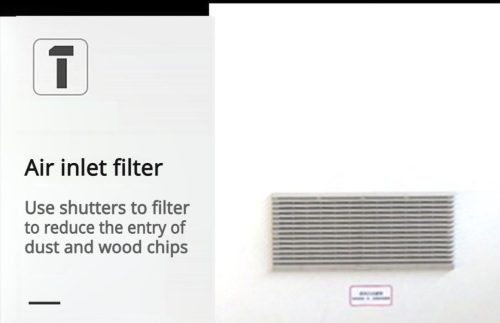

| Air Inlet Filter | √ | √ | √ |
| Three Range Power | NO | √ | √ |
Application
Widely used in various industries, such as Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, etc.
Features
Preheating fast, heating surface large, independent reserve layer, 3-phase motor, preventing chipping, greatly increases adhesion, etc.

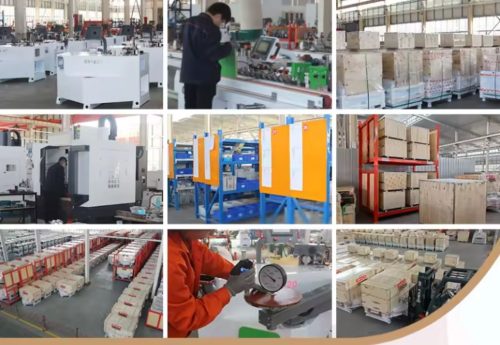

Workshop
